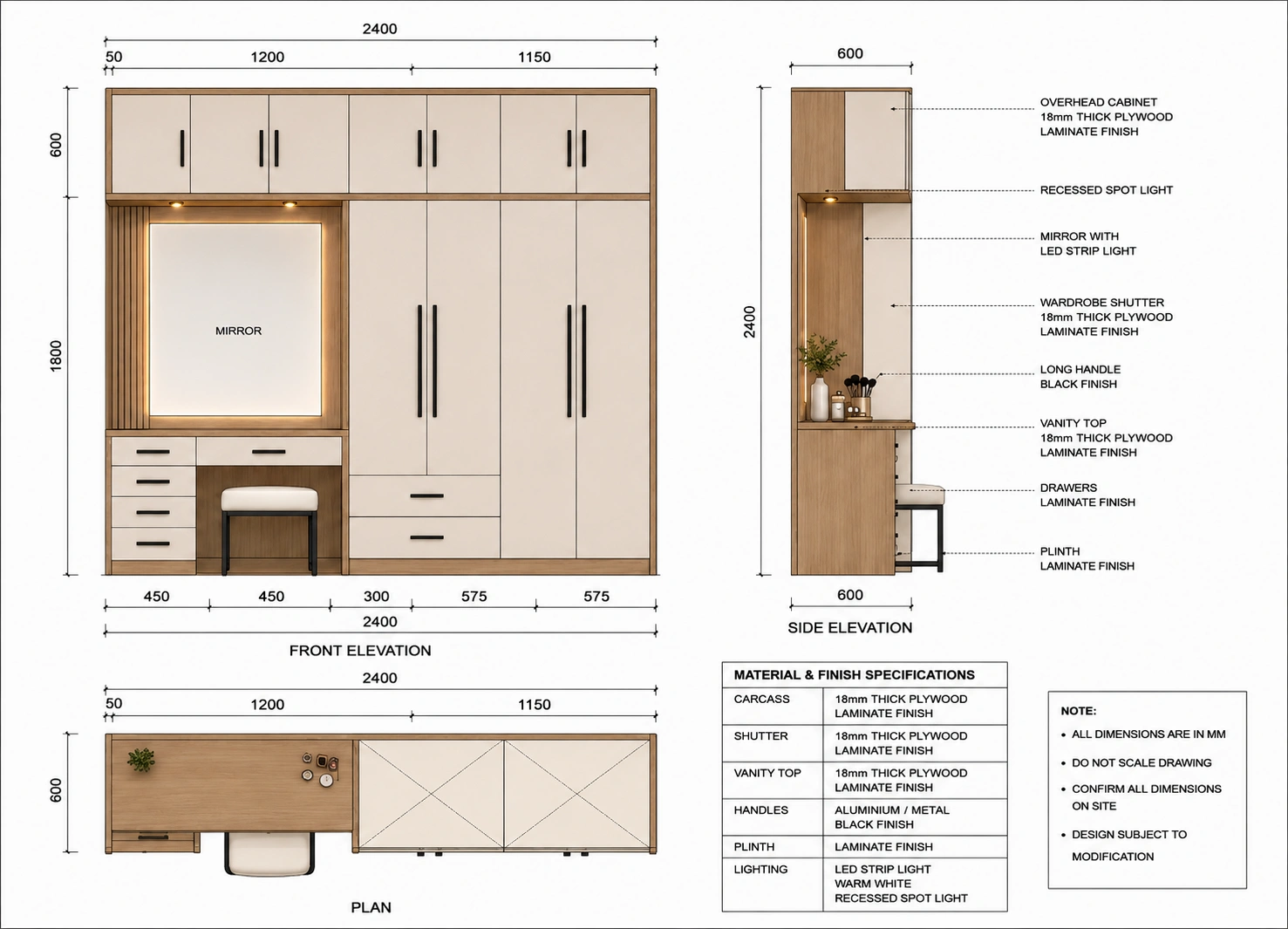

| MATERIAL / ITEM | DETAILS |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTER | 18mm THICK PLYWOOD LAMINATE FINISH |
| VANITY TOP | 18mm THICK PLYWOOD LAMINATE FINISH |
| HANDLES | ALUMINIUM / METAL BLACK FINISH |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT WARM WHITE RECESSED SPOT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

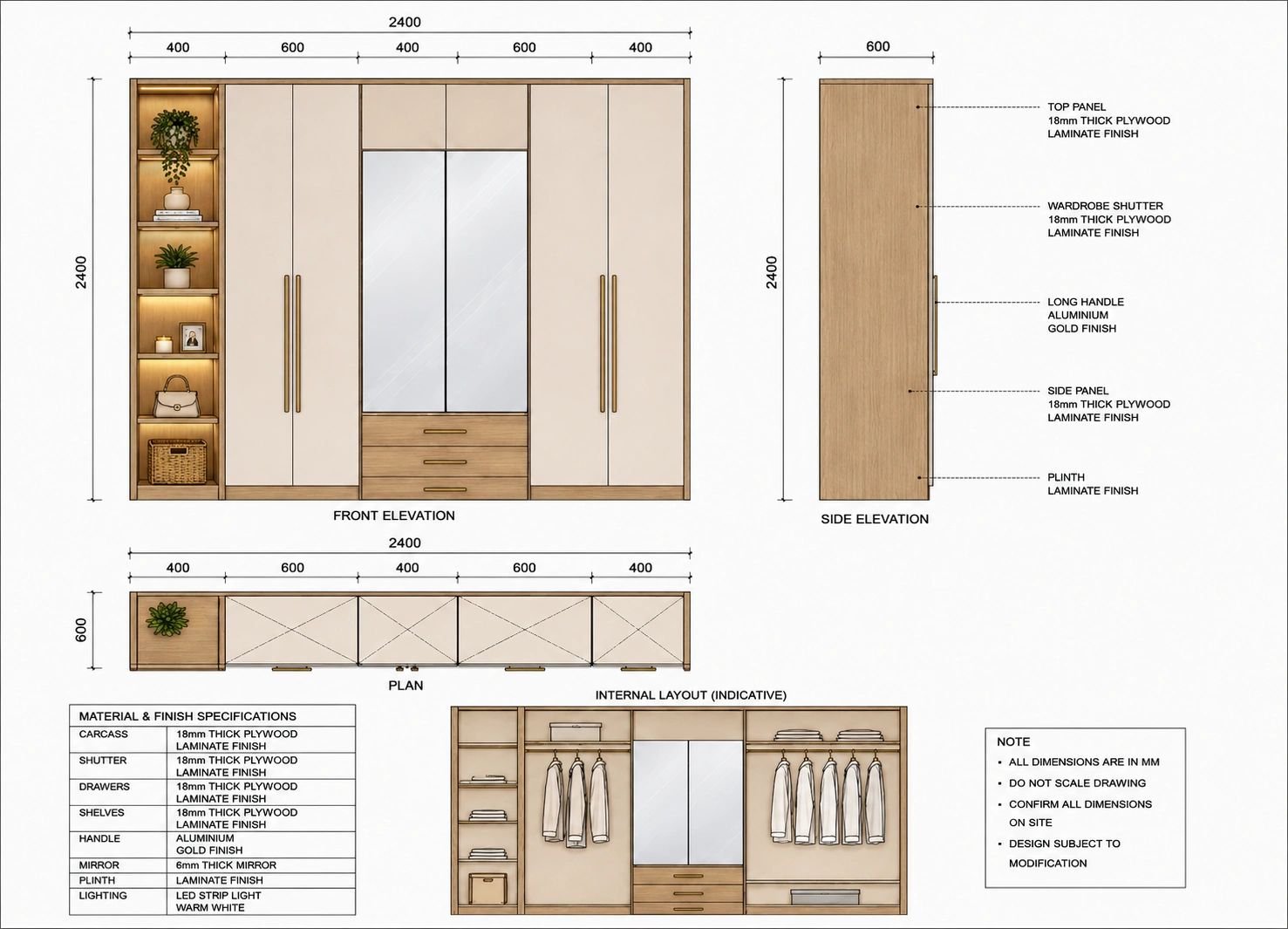

| MATERIAL / ITEM | DETAILS |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTER | 18mm THICK PLYWOOD LAMINATE FINISH |
| DRAWERS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHELVES | 18mm THICK PLYWOOD LAMINATE FINISH |
| HANDLE | ALUMINIUM GOLD FINISH |
| MIRROR | 5mm THICK MIRROR |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT WARM WHITE |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

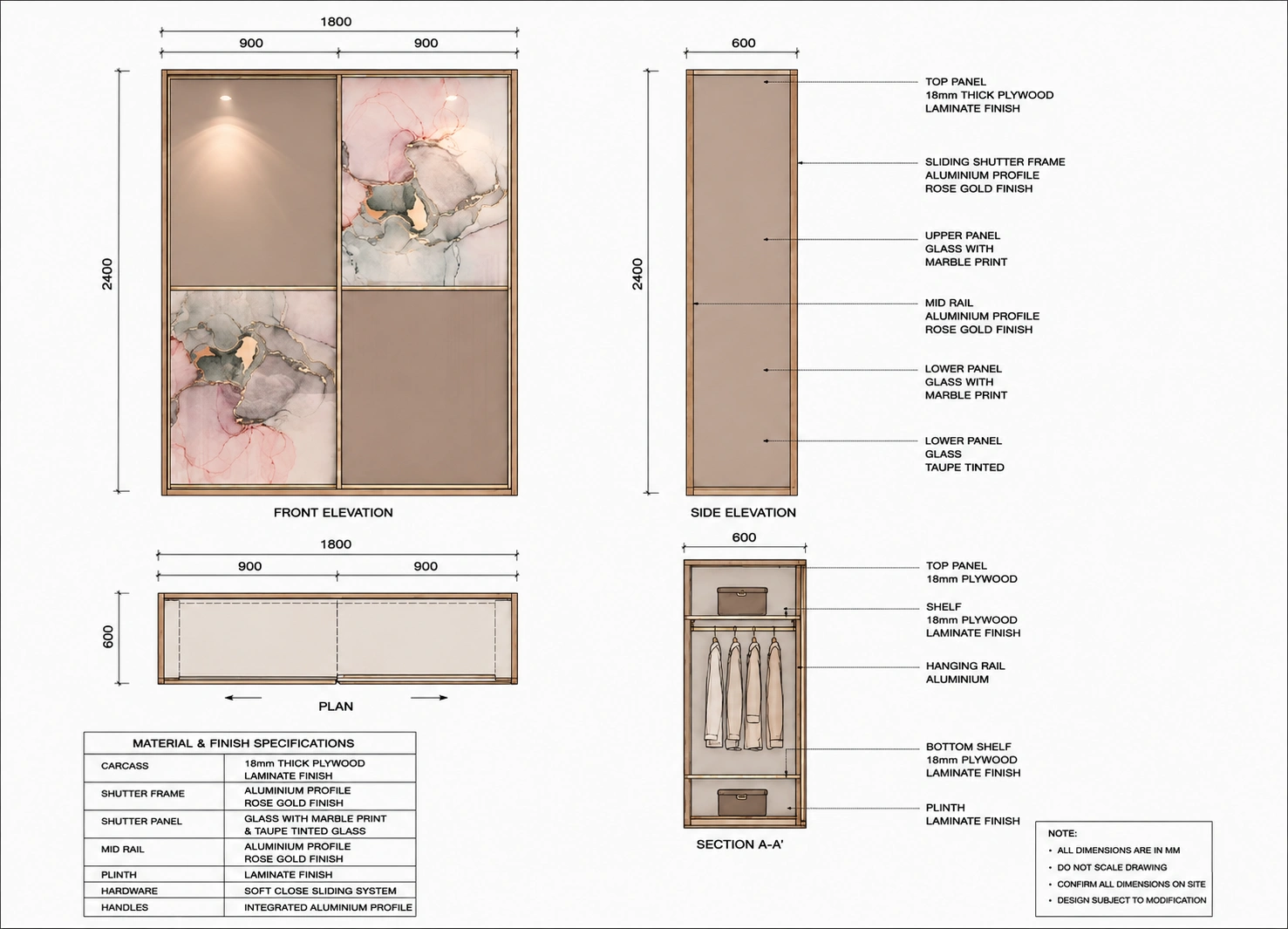

| MATERIAL | FINISH |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTER FRAME | ALUMINIUM PROFILE ROSE GOLD FINISH |
| SHUTTER PANEL | GLASS WITH MARBLE PRINT AND TAUPE TINTED GLASS |
| MID RAIL | ALUMINIUM PROFILE ROSE GOLD FINISH |
| PLINTH | LAMINATE FINISH |
| HARDWARE | SOFT CLOSE SLIDING SYSTEM |
| HANDLES | INTEGRATED ALUMINIUM PROFILE |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

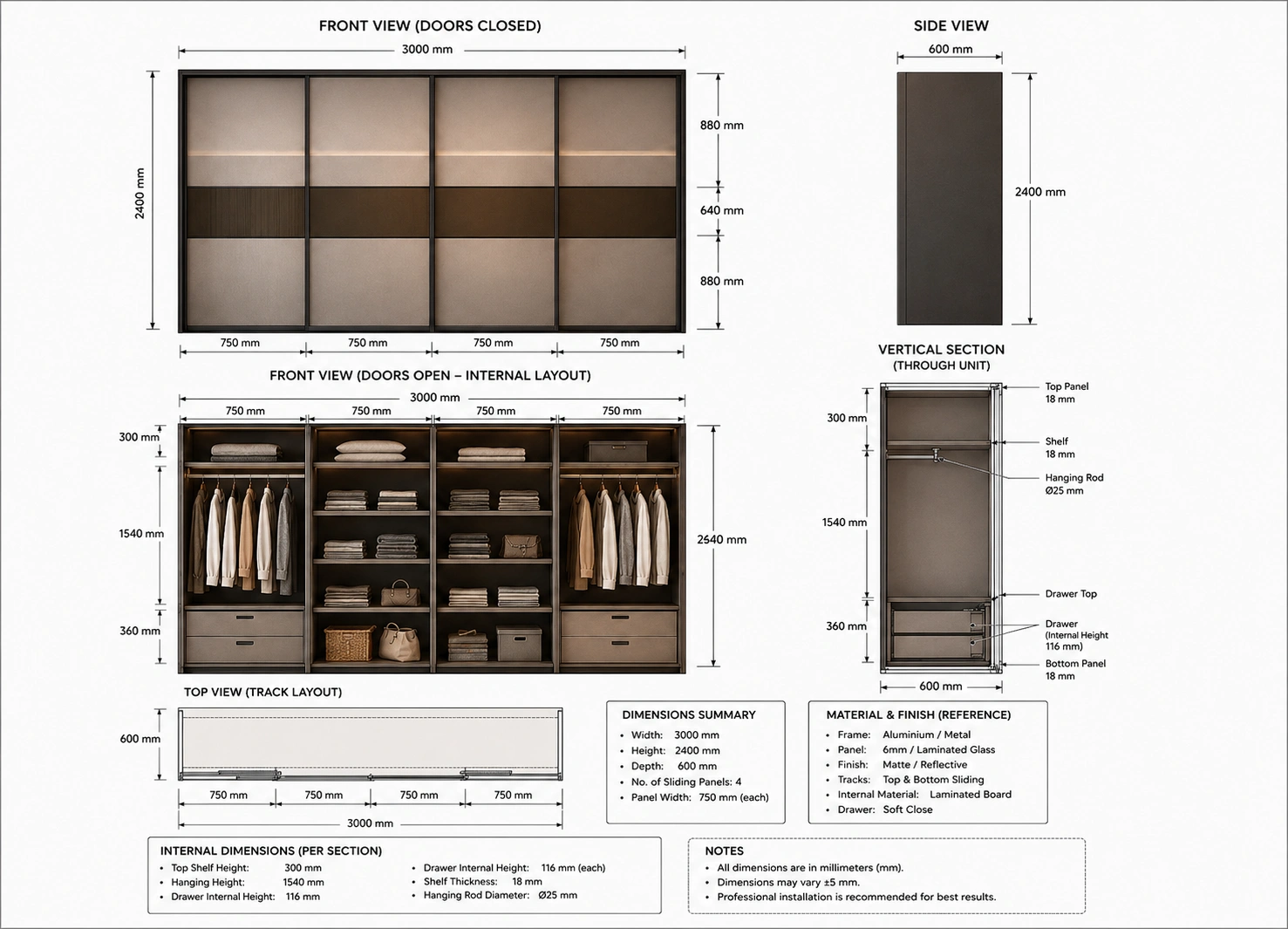

| MATERIAL / ITEM | DETAILS |
|---|---|
| FRAME | ALUMINIUM / METAL |
| PANEL | GLASS / LACQUERED GLASS |
| FINISH | MATTE / REFLECTIVE |
| TRACK | TOP & BOTTOM SLIDING |
| INTERNAL MATERIAL | LAMINATED BOARD |
| DRAWER | SOFT CLOSE |
| DIMENSION | DETAILS |
|---|---|
| WIDTH | 3000 mm |
| HEIGHT | 2400 mm |
| DEPTH | 600 mm |
| NO. OF SLIDING PANELS | 4 |
| PANEL WIDTH | 750 mm (EACH) |
| DIMENSION | DETAILS |
|---|---|
| TOP SHELF HEIGHT | 300 mm |
| DRAWER INTERNAL HEIGHT | 150 mm (EACH) |
| HANGING HEIGHT | 1040 mm |
| SHELF THICKNESS | 18 mm |
| DRAWER UNIT HEIGHT | 360 mm |
| HANGING ROD DIAMETER | Ø25 mm |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS (MM). | |
| • DIMENSIONS MAY VARY ±5 MM. | |
| • PROVIDE PROPER WALL TOLERANCE FOR INSTALLATION. |
