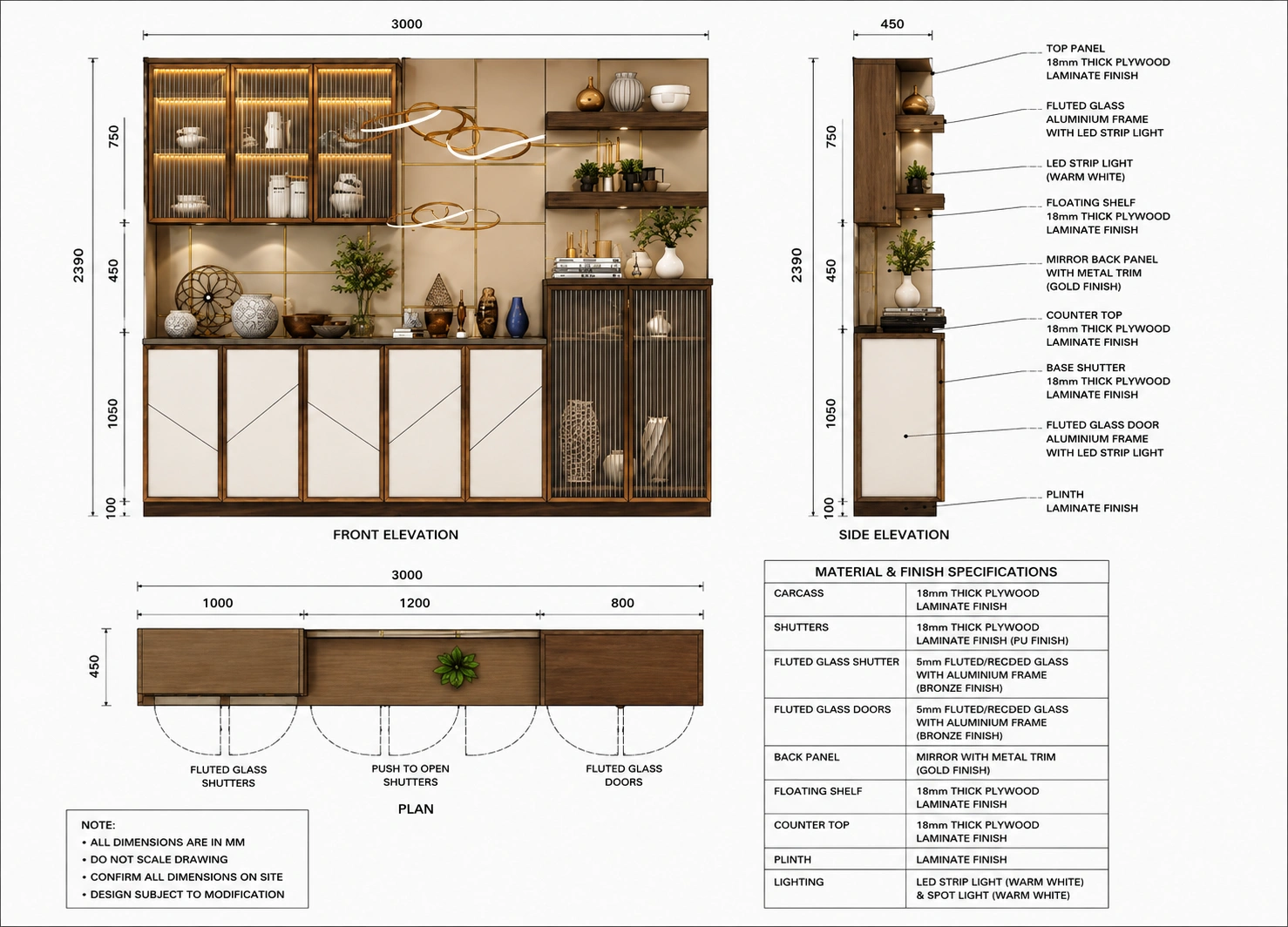

| MATERIAL / ITEM | DETAILS |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTERS | 18mm THICK PLYWOOD LAMINATE FINISH (PU FINISH) |
| FLUTED GLASS SHUTTER | 5mm FLUTED/REEDed GLASS WITH ALUMINIUM FRAME (BRONZE FINISH) |
| FLUTED GLASS DOORS | 5mm FLUTED/REEDed GLASS WITH ALUMINIUM FRAME (BRONZE FINISH) |
| BACK PANEL | MIRROR WITH METAL TRIM (GOLD FINISH) |
| FLOATING SHELF | 18mm THICK PLYWOOD LAMINATE FINISH |
| COUNTER TOP | 18mm THICK PLYWOOD LAMINATE FINISH |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) & SPOT LIGHT (WARM WHITE) |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

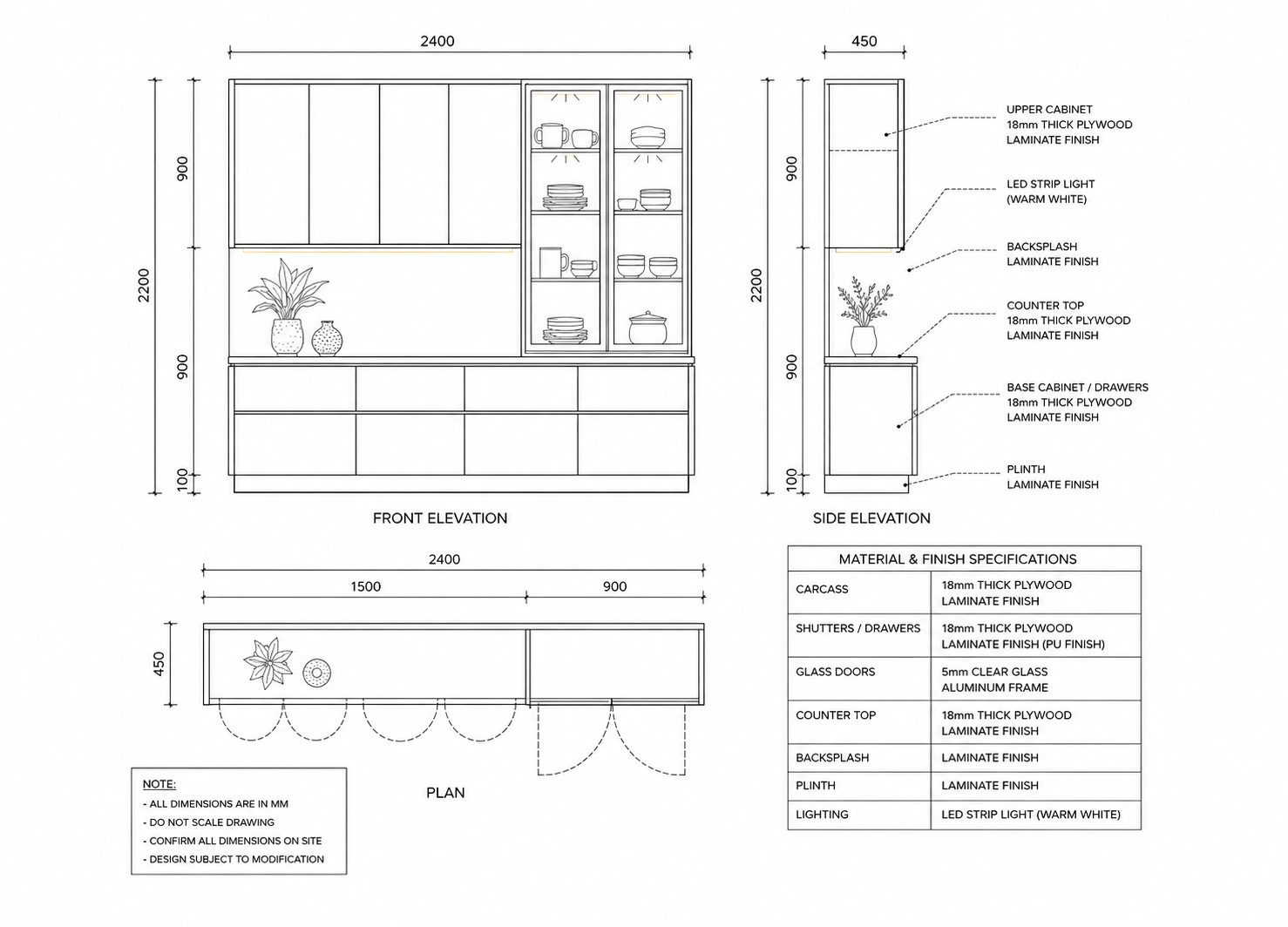

| MATERIAL / ITEM | DETAILS |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTERS / DRAWERS | 18mm THICK PLYWOOD, LAMINATE FINISH (PU FINISH) |
| GLASS DOORS | 5mm CLEAR GLASS ALUMINIUM FRAME |
| COUNTER TOP | 18mm THICK PLYWOOD LAMINATE FINISH |
| BACKSPLASH | LAMINATE FINISH |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |
Thoughtfully designed pooja spaces that blend traditional elegance with contemporary interiors. From detailed 2D elevations to realistic 3D visualizations, bringing every design detail to life.

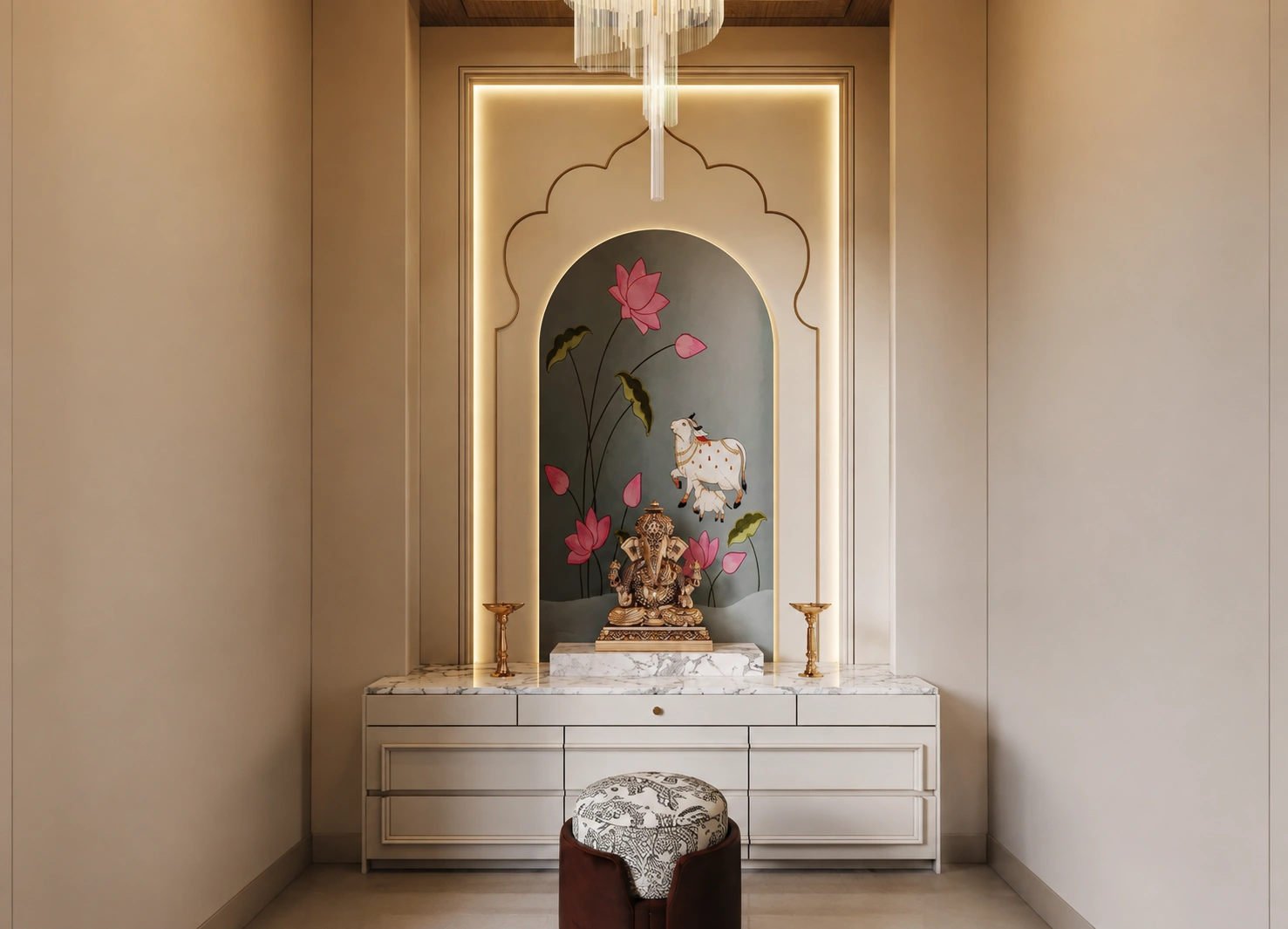

Traditional-inspired detailing with a contemporary floral backdrop, integrated storage, and a dedicated pooja platform.

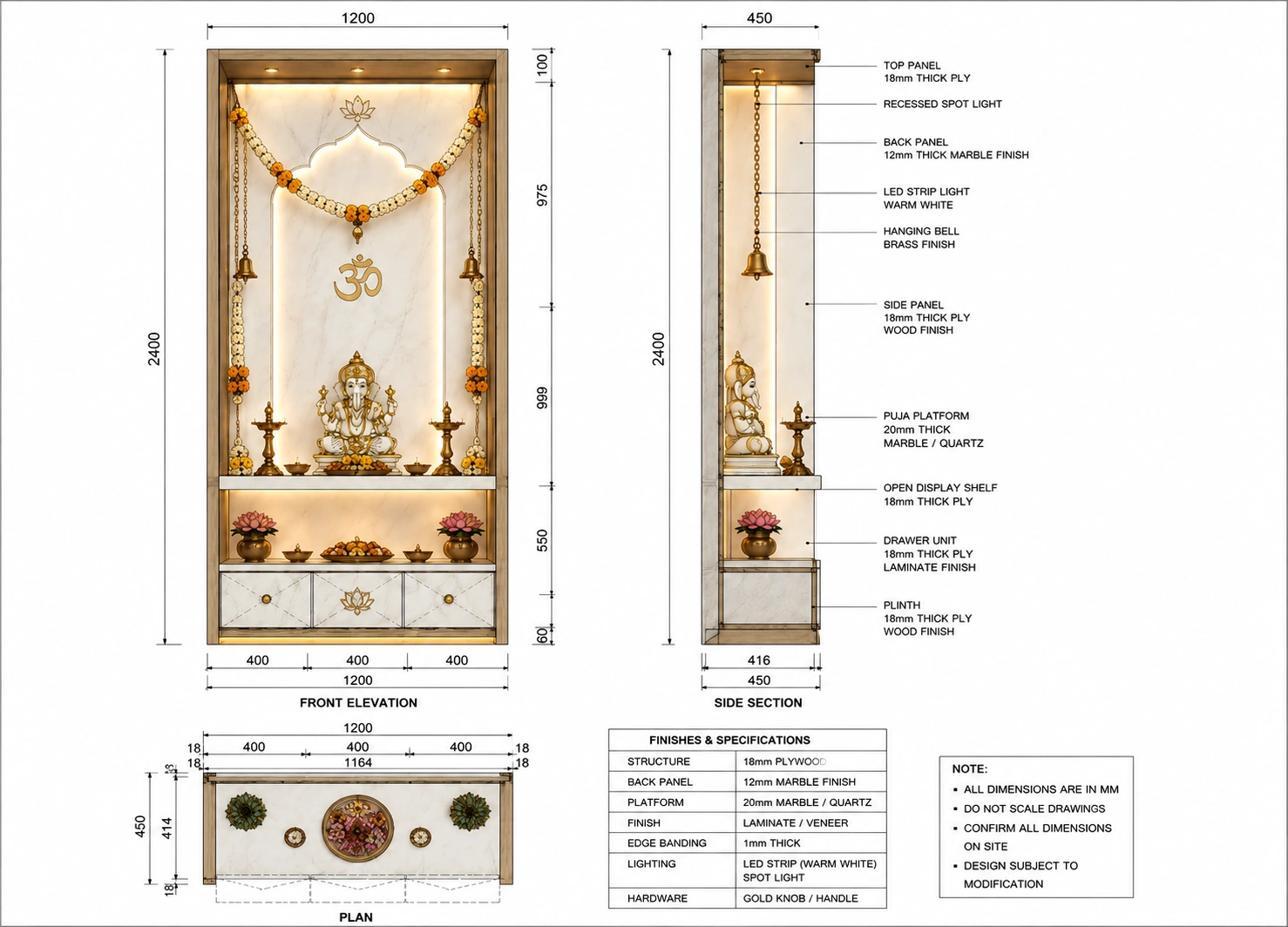

| DESCRIPTION | SPECIFICATION |
|---|---|
| STRUCTURE | 18mm PLYWOOD |
| BACK PANEL | 12mm MARBLE FINISH |
| PLATFORM | 20mm MARBLE / QUARTZ |
| FINISH | LAMINATE / VENEER |
| EDGE BANDING | 1mm THICK |
| LIGHTING | LED STRIP (WARM WHITE) SPOT LIGHT |
| HARDWARE | GOLD KNOB / HANDLE |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |
| DESCRIPTION | SPECIFICATION |
|---|---|
| CARCASS | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| SHUTTER | 18mm THICK PLYWOOD WITH HIGH GLOSS ACRYLIC LAMINATE FINISH |
| TOP | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| HANDLE | SS / ALUMINIUM SLIM BAR HANDLE |
| PLINTH | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| MIRROR | 5mm THICK CLEAR MIRROR WITH METAL FRAME |
| LIGHTING | LED BACK LIGHT (WARM WHITE) & PENDANT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |
| DESCRIPTION | SPECIFICATION |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTER | 18mm THICK PLYWOOD LAMINATE FINISH |
| FLUTED PANEL | LAMINATE FINISH |
| BACK PANEL | MARBLE FINISH / LAMINATE FINISH |
| TOP SHELF | 18mm THICK PLYWOOD LAMINATE FINISH |
| HANDLE | S.S. / ALUMINIUM GOLD FINISH |
| DECORATIVE ART | S.S. METAL GOLD FINISH |
| MIRROR | 5mm THICK MIRROR WITH METAL FRAME GOLD FINISH |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) & SPOT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

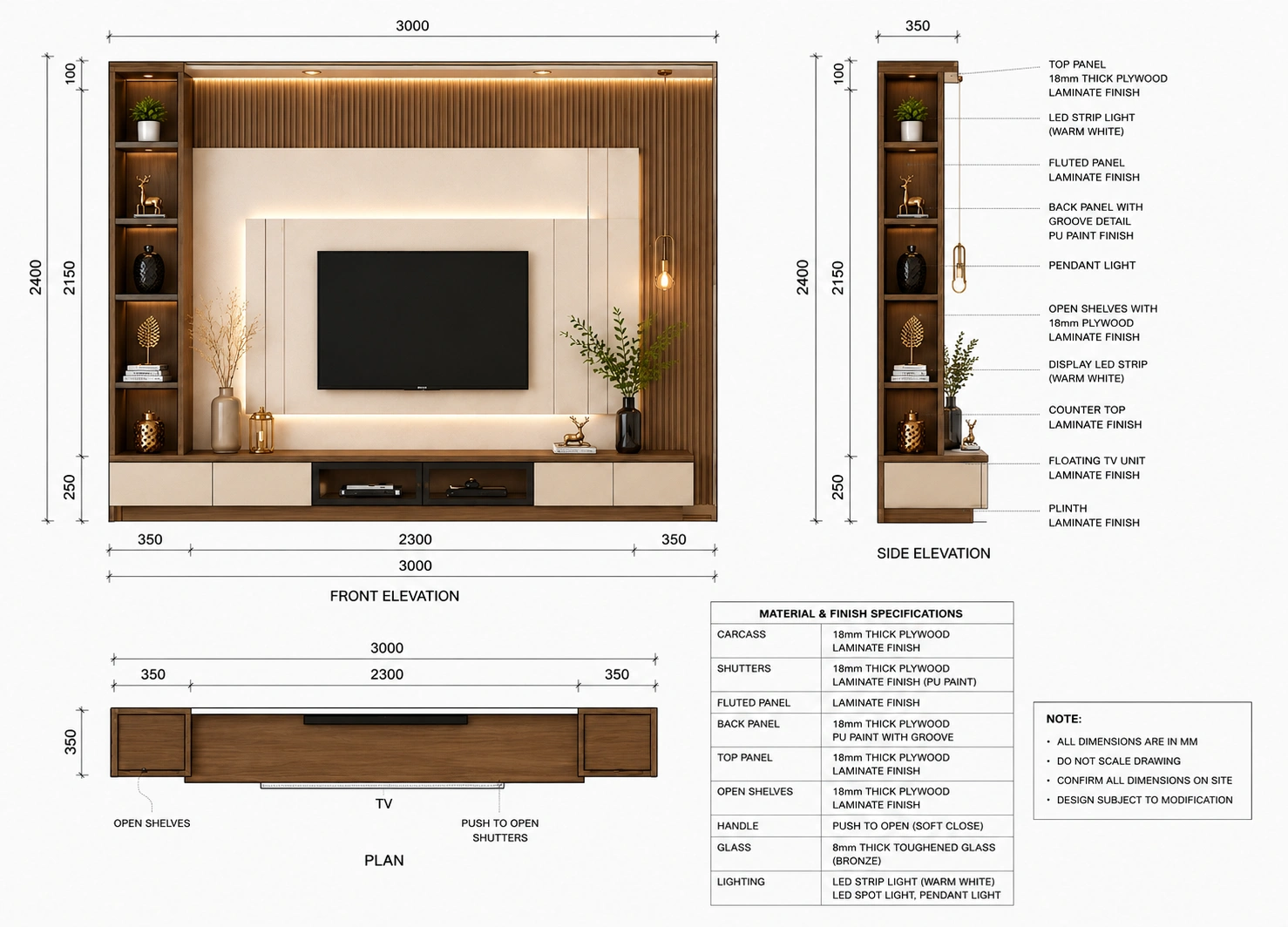

| ITEM | SPECIFICATION |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTERS | 18mm THICK PLYWOOD LAMINATE FINISH ( PU PAINT ) |
| FLUTED PANEL | LAMINATE FINISH |
| BACK PANEL | 18mm THICK PLYWOOD PU PAINT WITH GROOVE |
| TOP PANEL | 18mm THICK PLYWOOD LAMINATE FINISH |
| OPEN SHELVES | 18mm THICK PLYWOOD LAMINATE FINISH |
| HANDLE | PUSH TO OPEN (SOFT CLOSE) |
| GLASS | 8mm THICK TOUGHENED GLASS (BRONZE) |
| LIGHTING | LED STRIP LIGHT (WARM WHITE)<br> LED SPOT LIGHT, PENDANT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

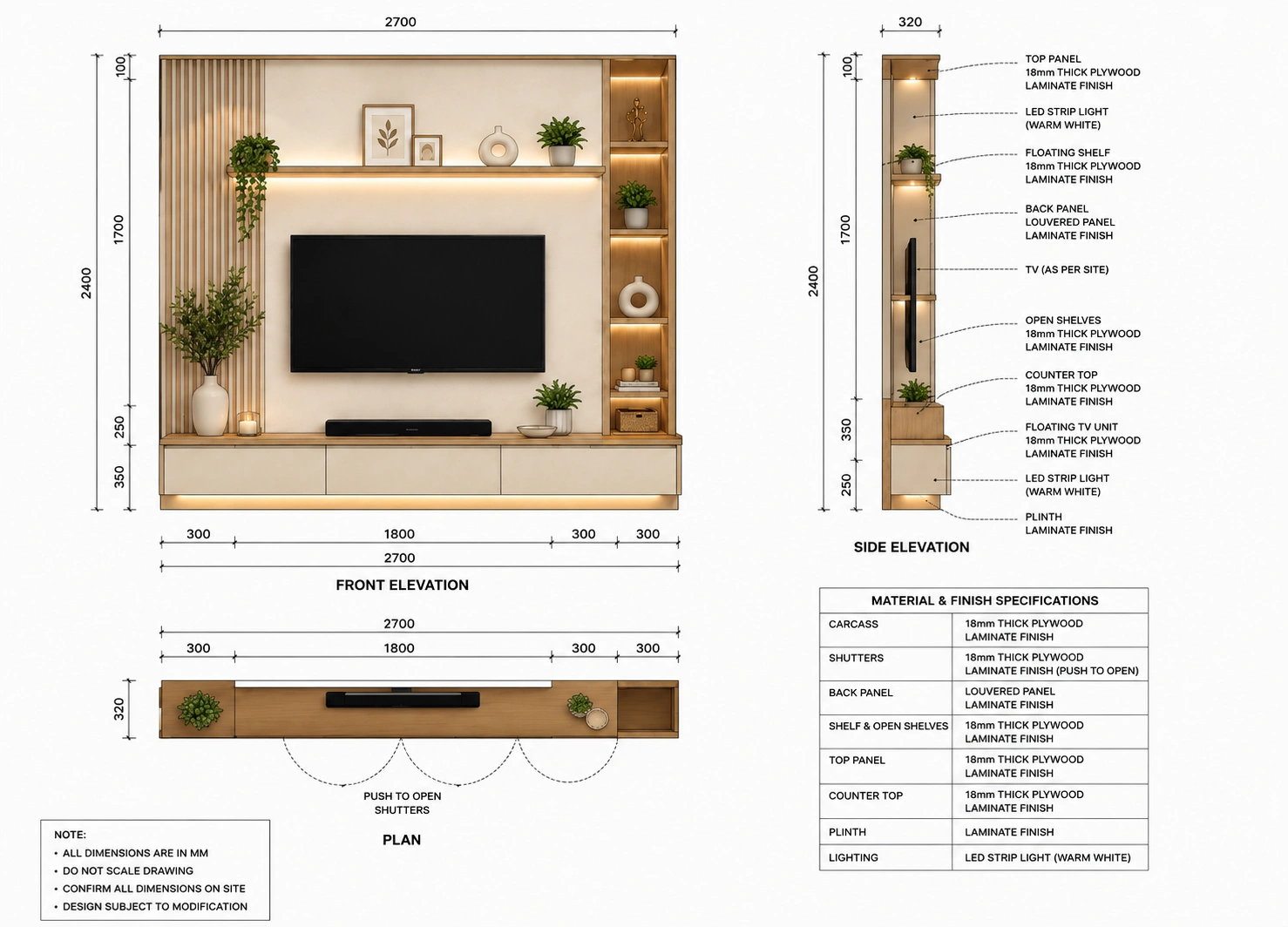

| ITEM | SPECIFICATION |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTERS | 18mm THICK PLYWOOD LAMINATE FINISH (PUSH TO OPEN) |
| SHELF & OPEN SHELVES | 18mm THICK PLYWOOD LAMINATE FINISH |
| BACK PANE | LOUVERED PANEL LAMINATE FINISH |
| TOP PANEL | 18mm THICK PLYWOOD LAMINATE FINISH |
| COUNTER TOP | 18mm THICK PLYWOOD LAMINATE FINISH |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

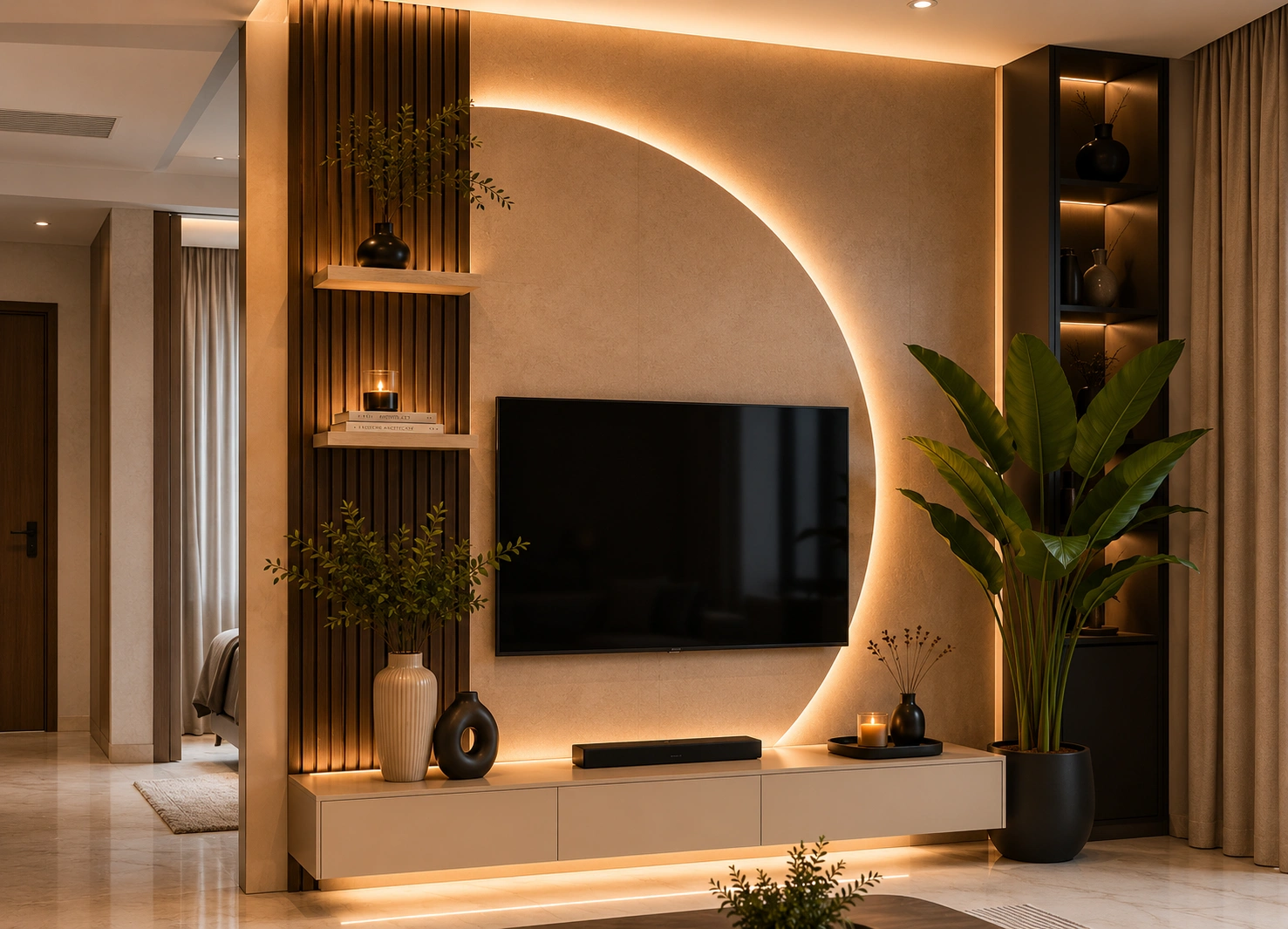

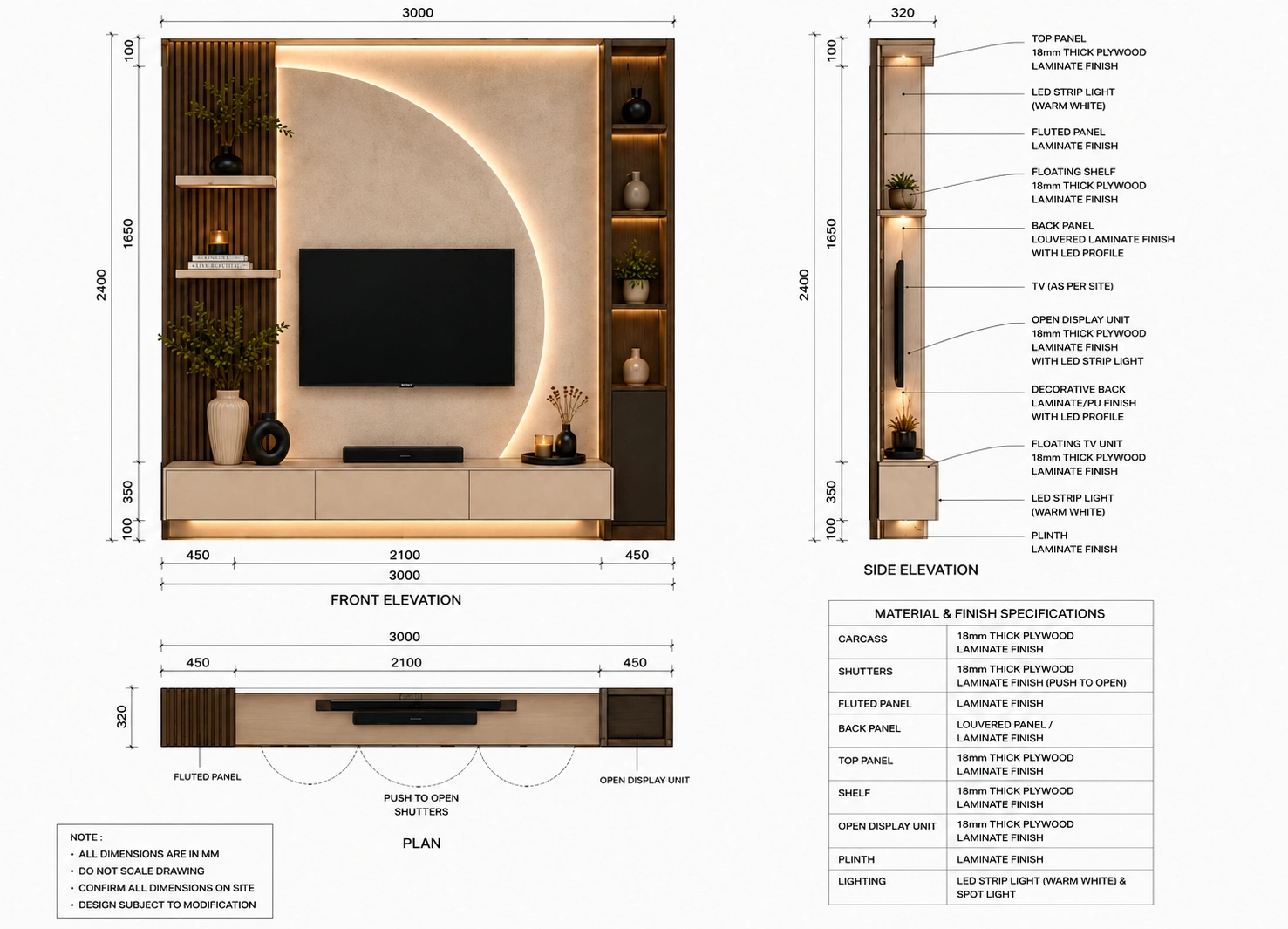

| ITEM | SPECIFICATION |
|---|---|
| CARCASS | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHUTTERS | 18mm THICK PLYWOOD LAMINATE FINISH (PUSH TO OPEN) |
| FLUTED PANEL | LAMINATE FINISH |
| BACK PANE | LOUVERED PANEL LAMINATE FINISH |
| TOP PANEL | 18mm THICK PLYWOOD LAMINATE FINISH |
| SHELF | 18mm THICK PLYWOOD LAMINATE FINISH |
| OPEN DISPLAY UNIT | 18mm THICK PLYWOOD LAMINATE FINISH |
| PLINTH | LAMINATE FINISH |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) & SPOT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

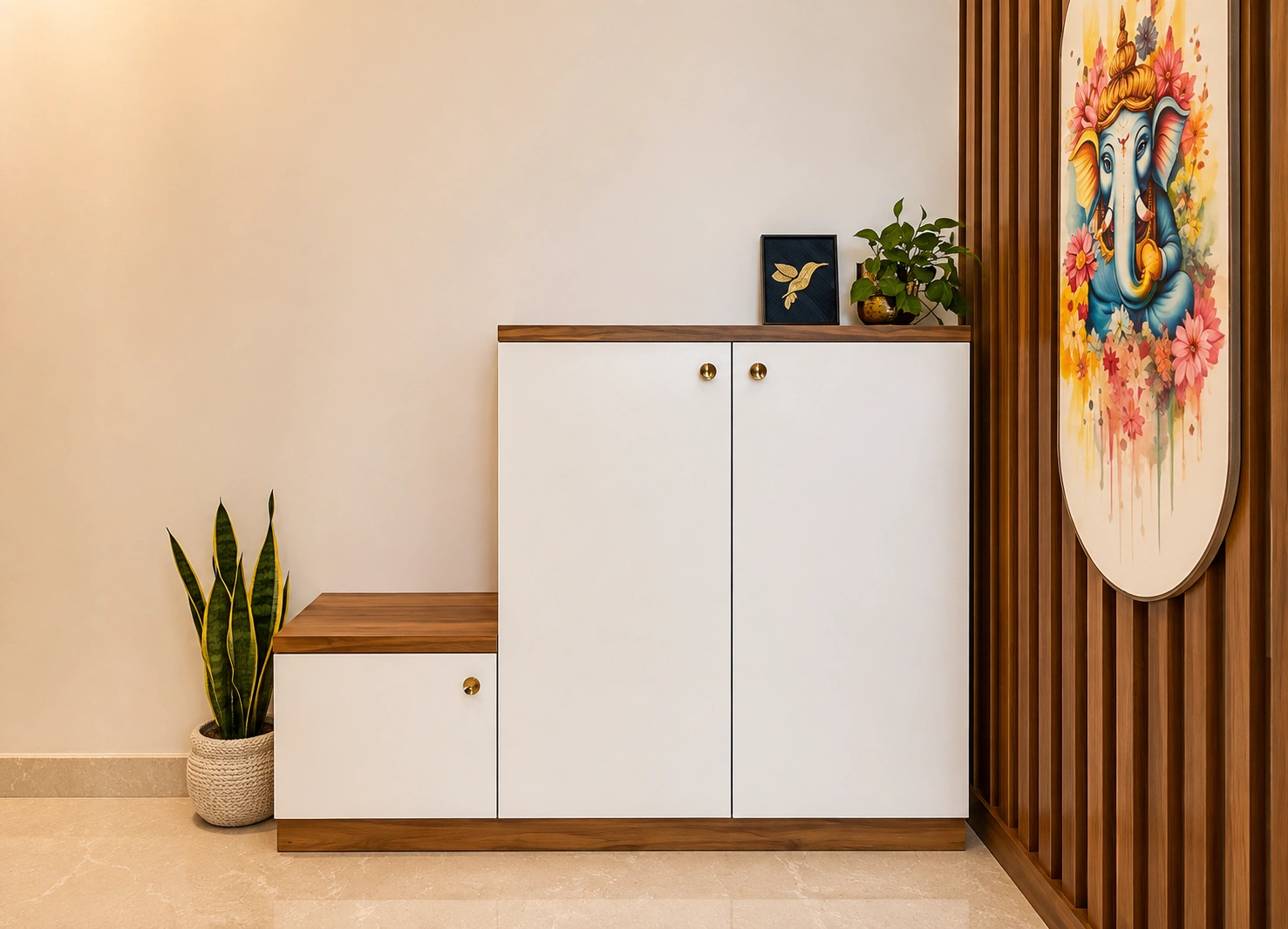

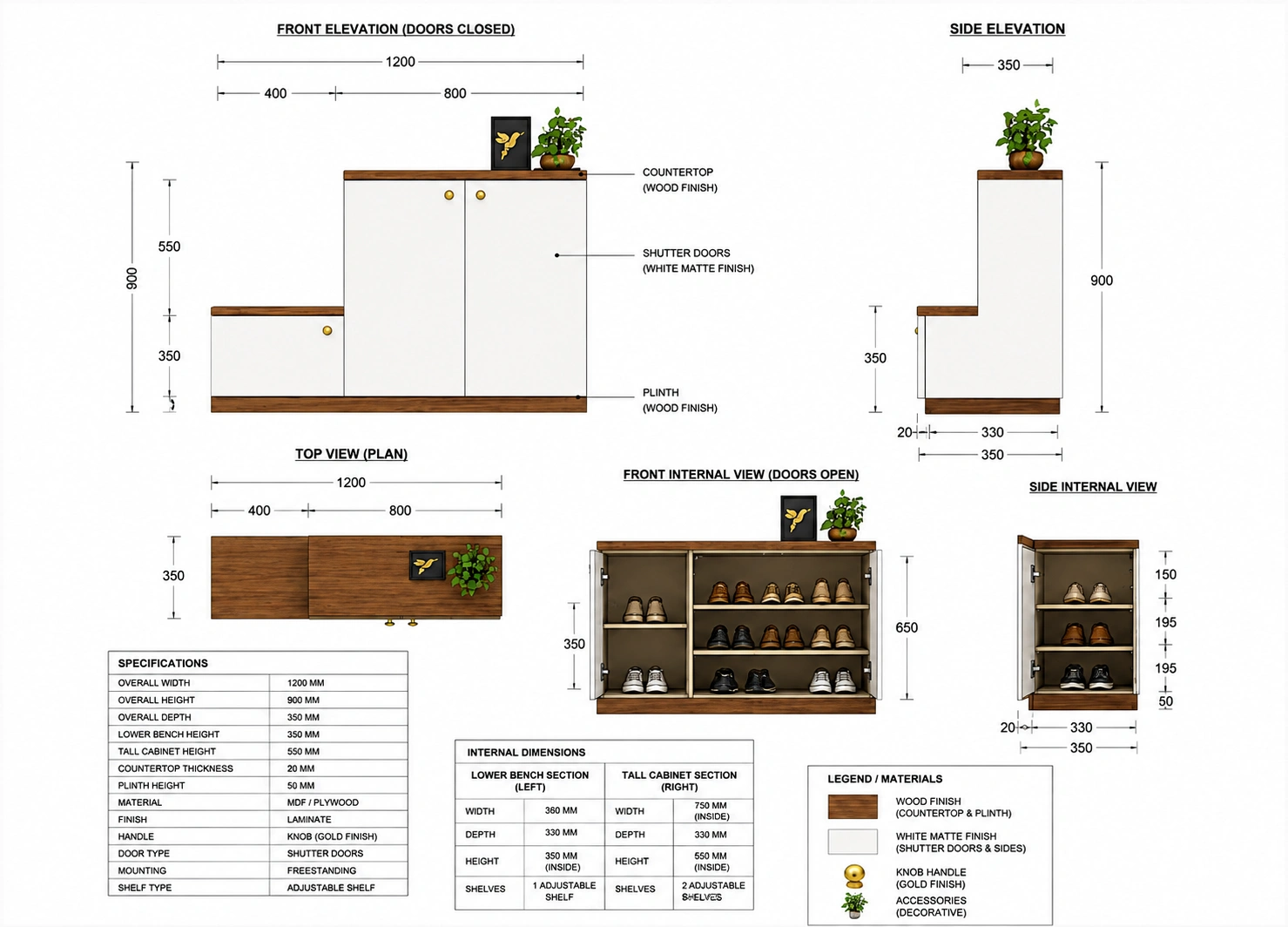

| ITEM | SPECIFICATION |
|---|---|
| OVERALL WIDTH | 1200 mm |
| OVERALL HEIGHT | 900 mm |
| OVERALL DEPTH | 350 mm |
| LOWER BENCH HEIGHT | 350 mm |
| TALL CABINET HEIGHTL | 900 mm |
| COUNTERTOP THICKNESS | 20 mm |
| PLINTH HEIGHT | 50 mm |
| MATERIAL | MDF / PLYWOOD |
| FINISH | LAMINATE |
| HANDLE | KNOB (GOLD FINISH) |
| DOOR TYPE | SHUTTER DOOR |
| MOUNTING | FREESTANDING |
| SHELF TYPE | ADJUSTABLE SHELF |
| LEGEND / MATERIALS | |
|---|---|
| WOOD FINISH (COUNTERTOP AND PLINTHS) | |
| WHITE MATTE FINISH (SHUTTER DOORS & SIDES) | |
| KNOB HANDLE (GOLD FINISH) | |
| ACCESSORIES (DECORATIVE) | |
| INTERNAL DIMENSIONS | |||
|---|---|---|---|
| LOWER BENCH SECTION (LEFT) | TALL CABINET SECTION (RIGHT) | ||
| WIDTH | 360 mm | WIDTH | 760 mm (INSIDE) |
| DEPTH | 330 mm | DEPTH | 330 mm |
| HEIGHT | 320 mm (INSIDE) | HEIGHT | 830 mm (INSIDE) |
| SHELVES | 1 ADJUSTABLE SHELF | SHELVES | 2 ADJUSTABLE SHELVES |

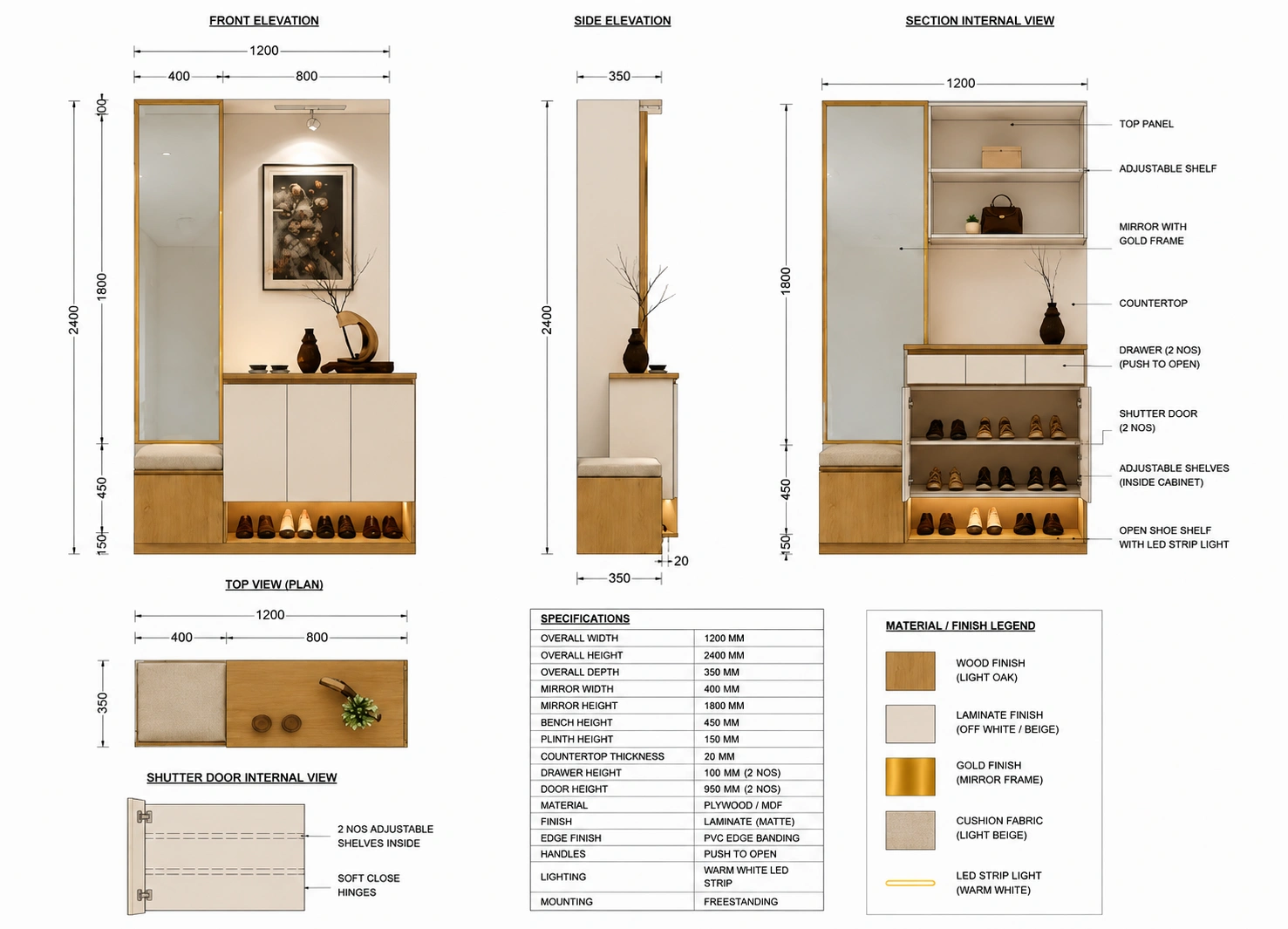

| SPECIFICATIONS: | |
|---|---|
| OVERALL WIDTH | 1200 mm |
| OVERALL HEIGHT | 2400 mm |
| OVERALL DEPTH | 350 mm |
| MIRROR WIDTH | 400 mm |
| MIRROR HEIGHT | 1800 mm |
| BENCH HEIGHT | 450 mm |
| PLINTH HEIGHT | 150 mm |
| COUNTERTOP THICKNESS | 20 mm |
| DRAWER HEIGHT | 100 mm (3 NOS) |
| DOOR HEIGHT | 550 mm (3 NOS) |
| MATERIAL | PLYWOOD / MDF |
| FINISH | LAMINATE (MATTE) |
| EDGE FINISH | PVC EDGE BANDING |
| HANDLES | PUSH TO OPEN |
| LIGHTING | WARM WHITE LED STRIP |
| MOUNTING | FREESTANDING |
| LEGEND | |
|---|---|
| WOOD FINISH (LIGHT OAK) | |
| LAMINATE FINISH (OFF WHITE / BEIGE) | |
| GOLD FINISH (MIRROR FRAME) | |
| CUSHION FABRIC (LIGHT BEIGE) | |
| LED STRIP LIGHT (WARM WHITE) | |

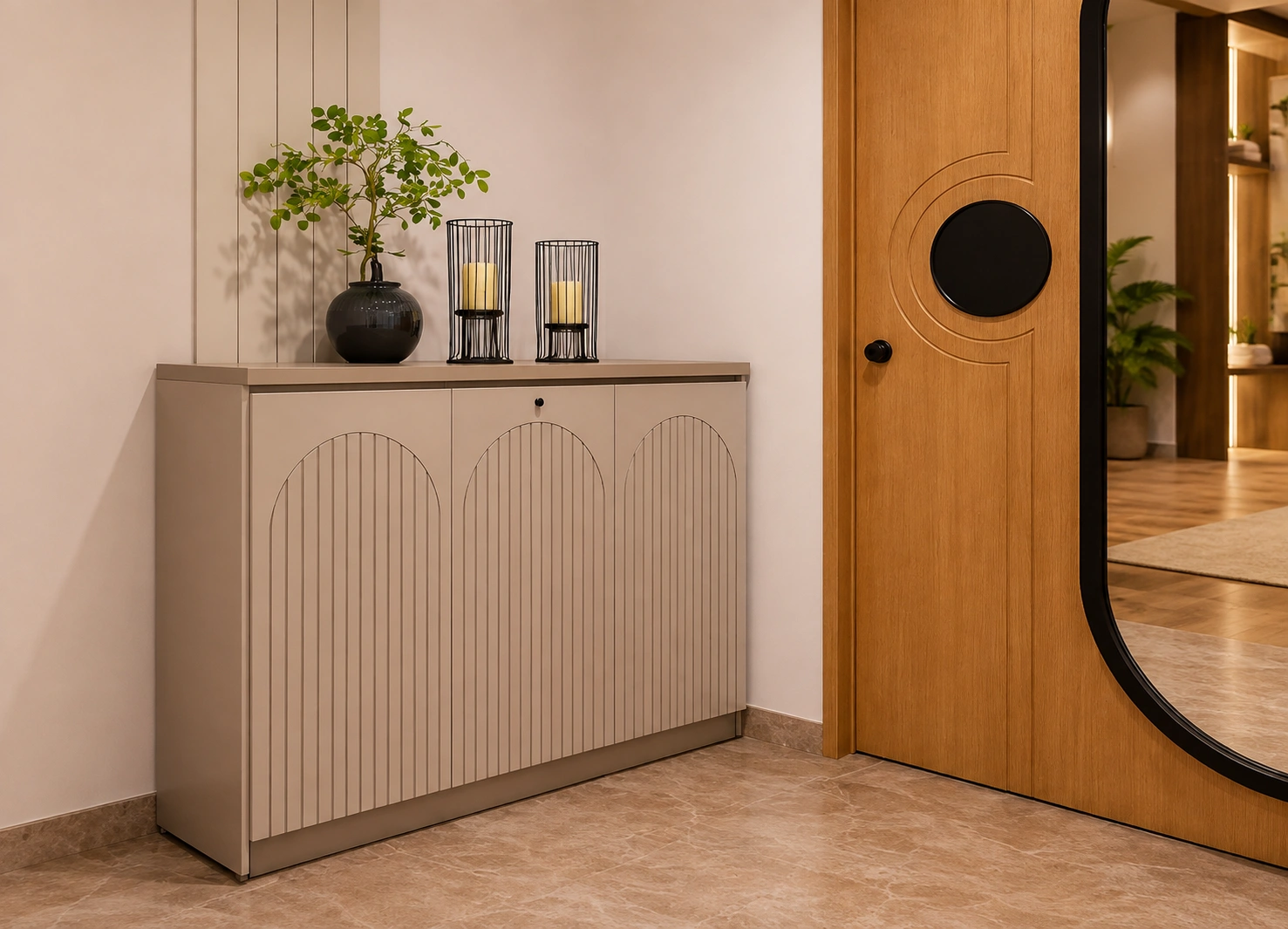

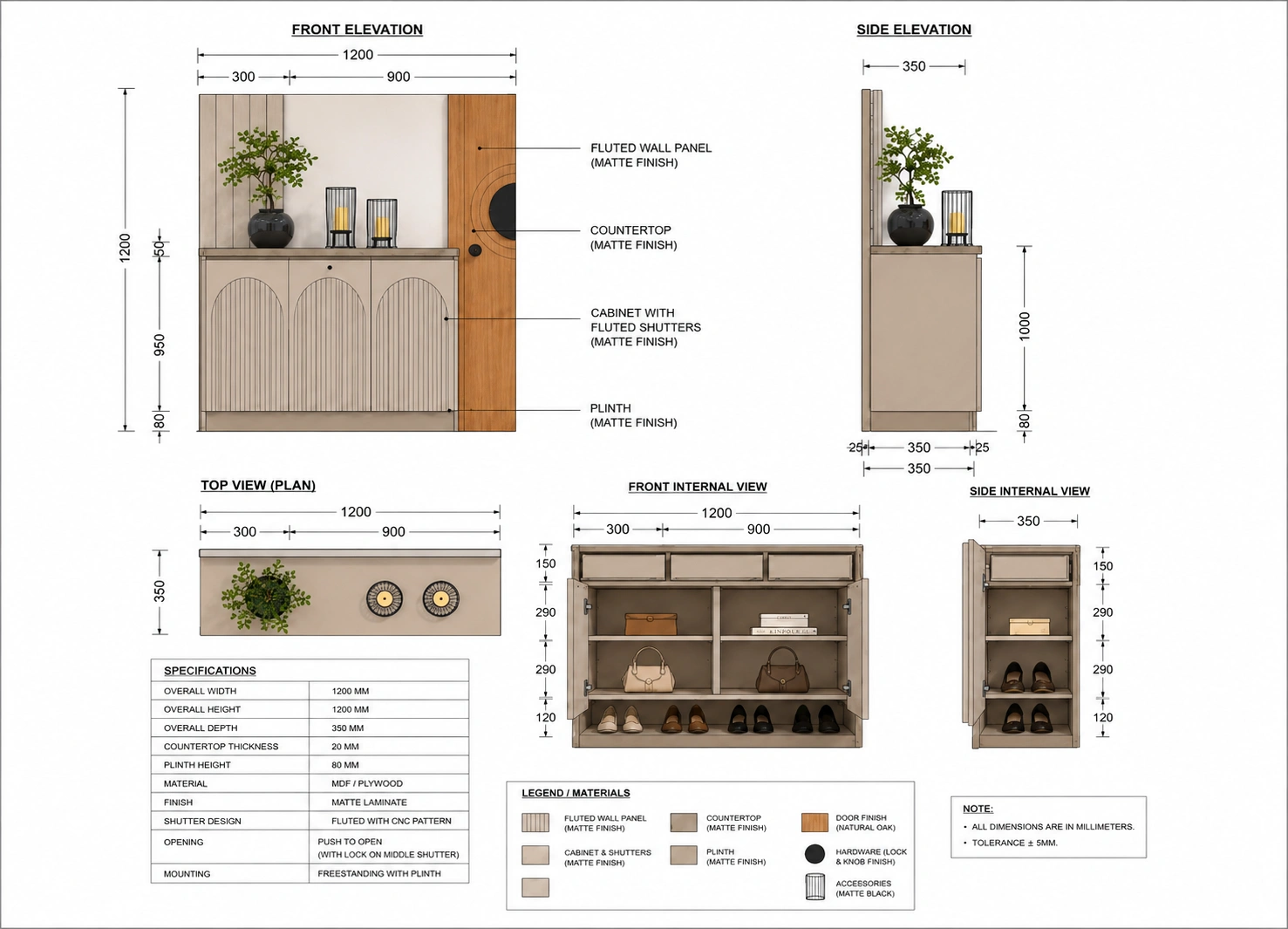

| ITEM | SPECIFICATION |
|---|---|
| OVERALL WIDTH | 1200 mm |
| OVERALL HEIGHT | 1200 mm |
| OVERALL DEPTH | 350 mm |
| COUNTERTOP THICKNESS | 20 mm |
| PLINTH HEIGHT | 80 mm |
| MATERIAL | MDF / PLYWOOD |
| FINISH | MATTE LAMINATE |
| SHUTTER DESIGN | FLUTED WITH ARCH PATTERN |
| OPENING | PUSH TO OPEN (WITH LOCK ON MIDDLE SHUTTER) |
| MOUNTING | FREESTANDING WITH PLINTH |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| •TOLERANCE ± 5mm. |
| LEGEND | |
|---|---|
| FLUTED WALL PANEL (MATTE FINISH) | |
| CABINET & SHUTTERS (MATTE FINISH) | |
| POUNTERTOP (MATTE FINISH) | |
| COUNTERTOP (MATTE FINISH) | |
| PLINTH (MATTE FINISH) | |
| DOOR FINISH (NATURAL OAK) | |
| HARDWARE / LOCK (BLACK FINISH) | |
| ACCESSORIES (BLACK FINISH) | |
