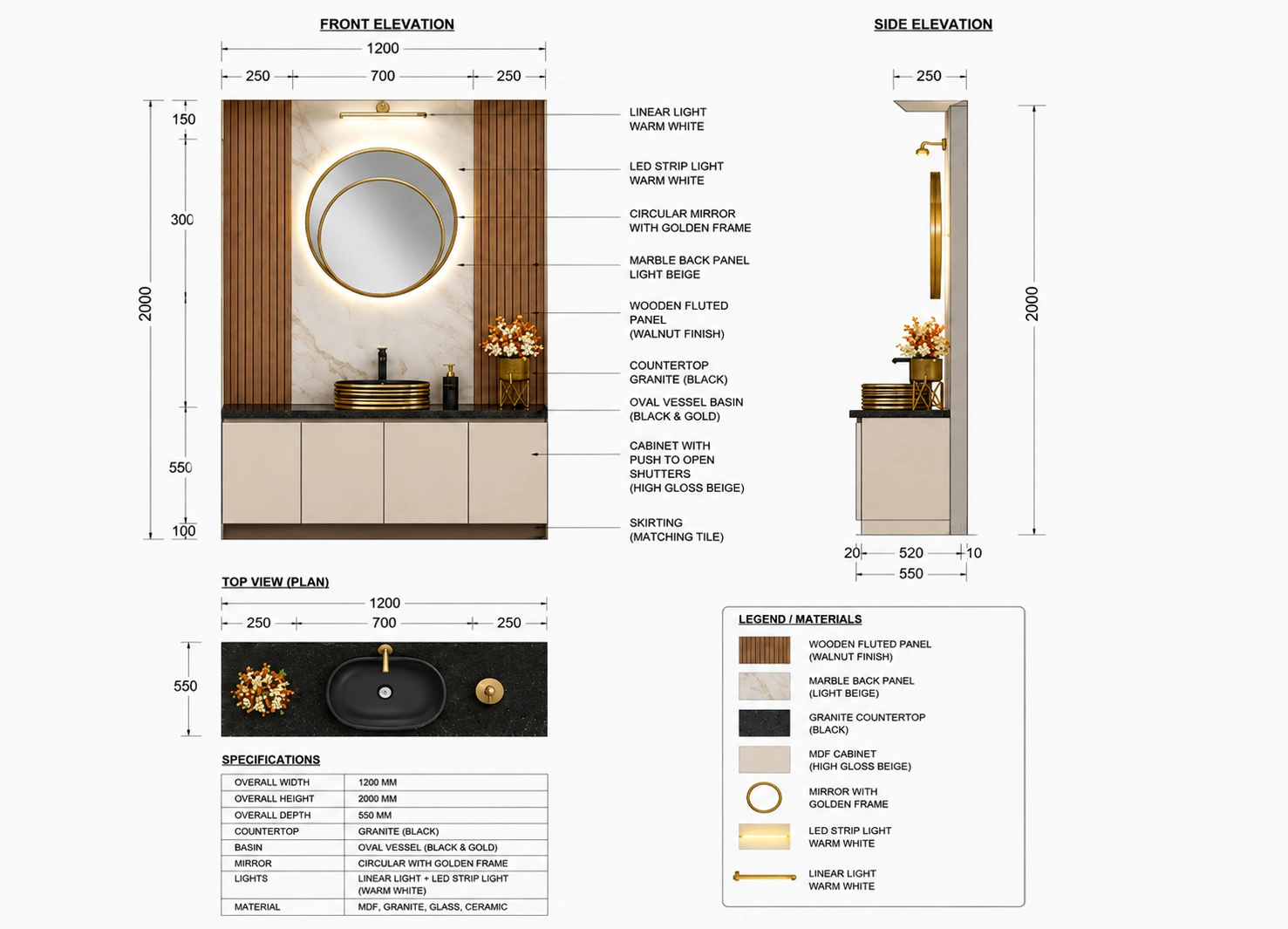

| ITEM | SPECIFICATION |
|---|---|
| OVERALL WIDTH | 1200 mm |
| OVERALL HEIGHT | 2000 mm |
| OVERALL DEPTH | 550 mm |
| COUNTERTOP | GRANITE (BLACK) |
| BASIN | OVAL VESSEL (BLACK & GOLD) |
| MIRROR | CIRCULAR WITH GOLDEN FRAME |
| LIGHTS | LINEAR LIGHT + LED STRIP LIGHT (WARM WHITE) |
| MATERIAL | MDF, GRANITE, GLASS, CERAMIC |
| LEGEND | |
|---|---|
| WOODEN FLUTED PANEL (WALNUT FINISH) | |
| MARBLE BACK PANEL (LIGHT BEIGE FINISH) | |
| GRANITE COUNTERTOP (BLACK FINISH) | |
| MDF CABINET (HIGH-GLOSS BEIGE) | |
| MIRROR (GOLDEN FRAME) | |
| LED STRIP LIGHT (WARM WHITE) | |
| LINEAR LIGHT (WARM WHITE) | |

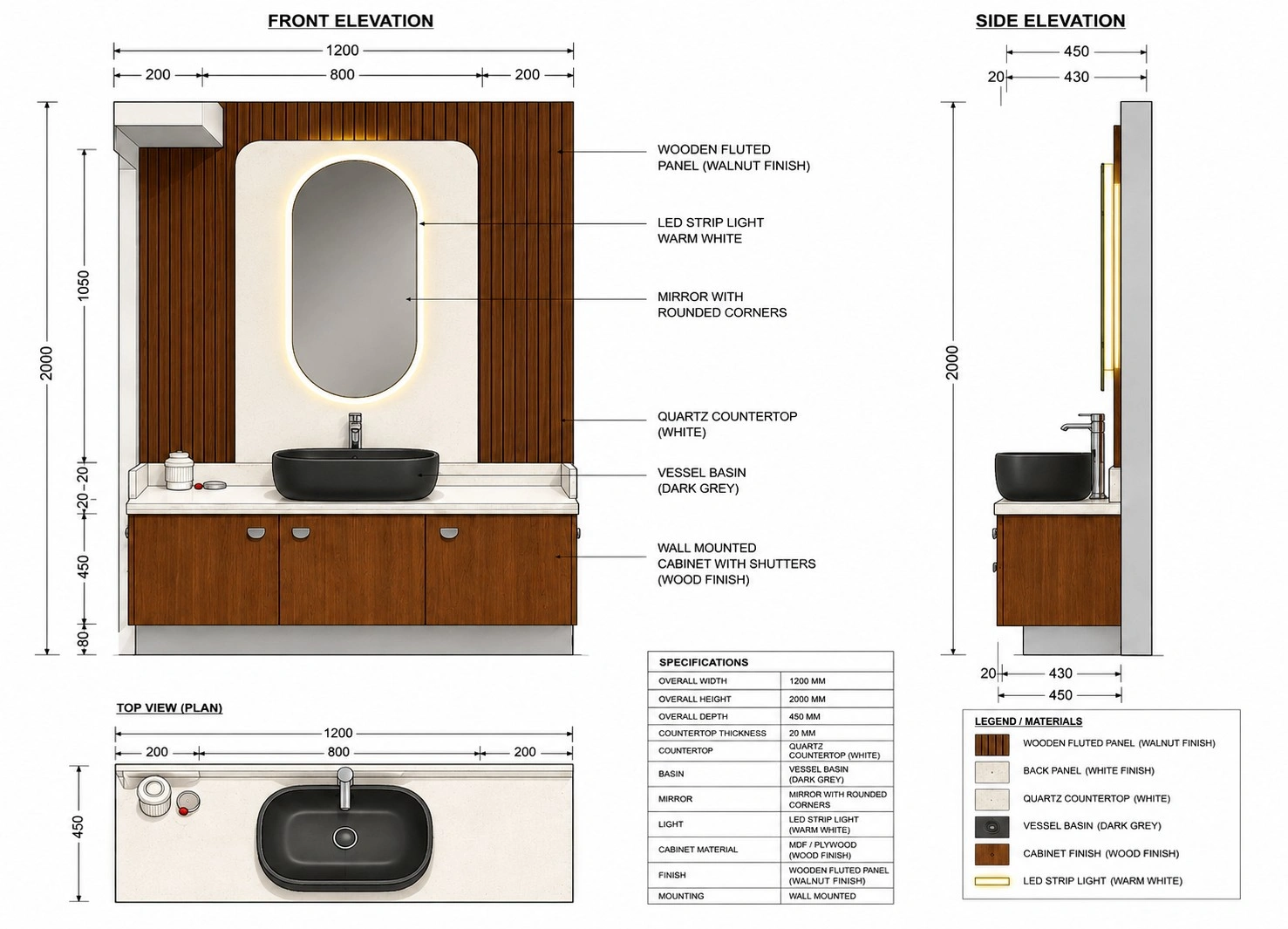

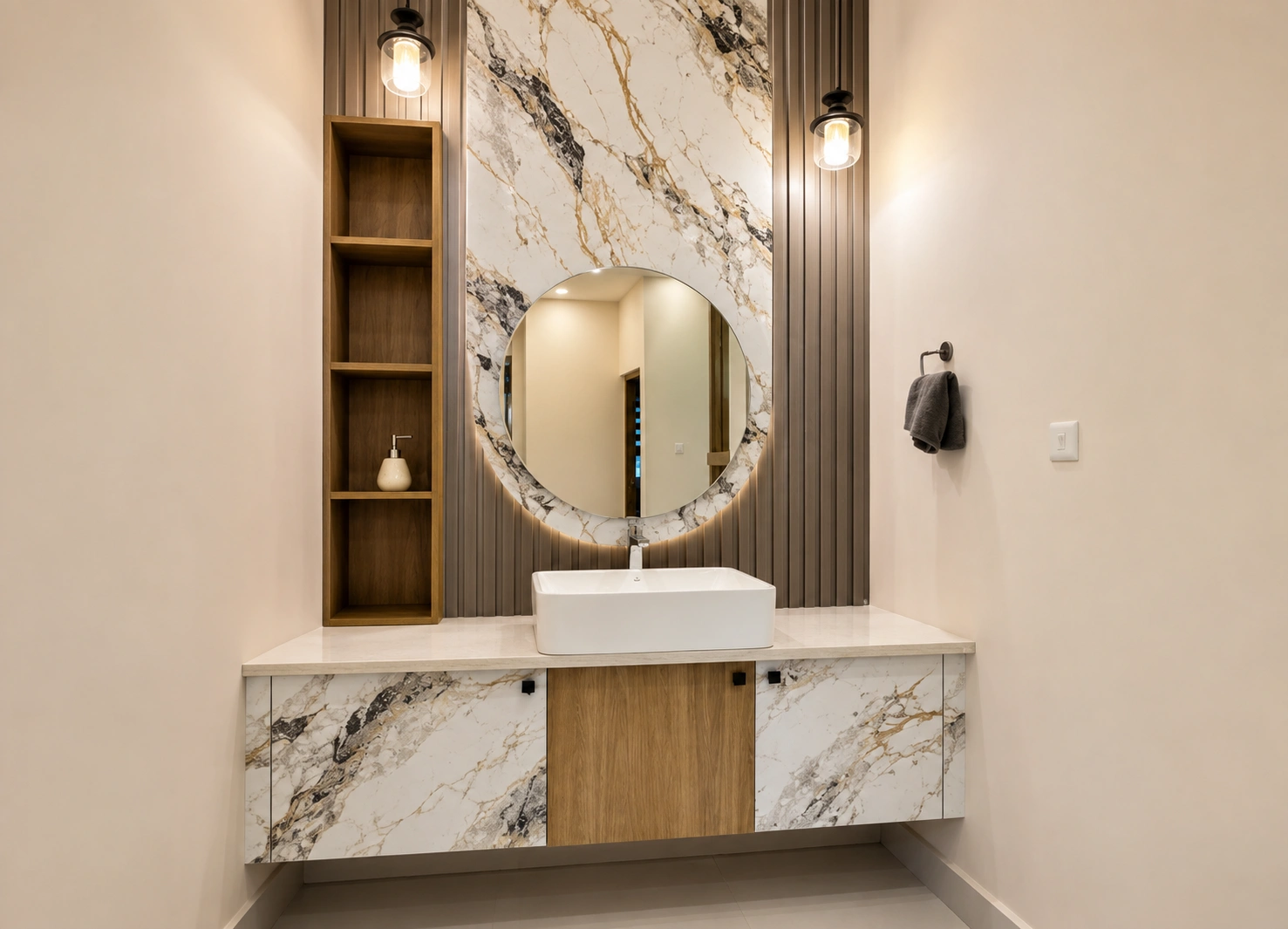

| SPECIFICATION | |
|---|---|
| OVERALL WIDTH | 1200 MM |
| OVERALL HEIGHT | 2000 MM |
| OVERALL DEPTH | 450 MM |
| COUNTERTOP THICKNESS | 20 MM |
| COUNTERTOP | QUARTZ (WHITE) |
| BASIN | VESSEL BASIN (DARK GREY) |
| MIRROR | ROUNDED CORNERS |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) |
| CABINET MATERIAL | MDF / PLYWOOD (WOOD FINISH) |
| FINISH | WOODEN FLUTED PANEL (WALNUT FINISH) |
| MOUNTING | WALL-MOUNTED |
| LEGEND | |
|---|---|
| FLUTED PANEL (TAUPE FINISH) | |
| MARBLE FINISH (GLOSSY FINISH) | |
| WOOD FINISH (NATURAL OAK) | |
| QUARTZ COUNTERTOP (WHITE) | |
| ABOVE COUNTER BASIN (WHITE) | |
| PENDANT LIGHT WARM WHITE | |
| LED STRIP LIGHT WARM WHITE | |

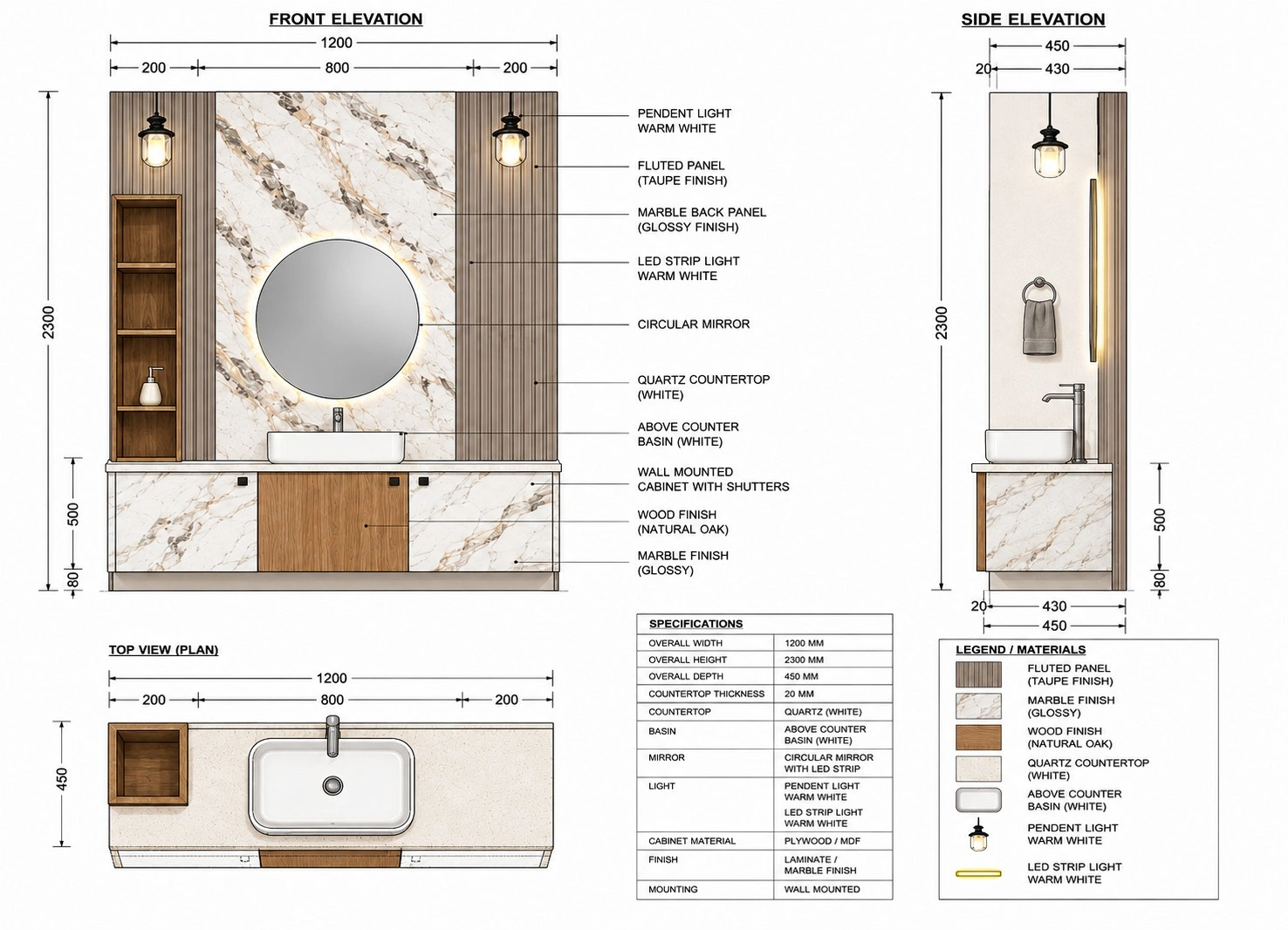

| SPECIFICATION | |
|---|---|
| OVERALL WIDTH | 1200 MM |
| OVERALL HEIGHT | 2300 MM |
| OVERALL DEPTH | 450 MM |
| COUNTERTOP THICKNESS | 20 MM |
| COUNTERTOP | QUARTZ (WHITE) |
| BASIN | ABOVE-COUNTER BASIN (WHITE) |
| MIRROR | CIRCULAR MIRROR WITH LED STRIP |
| LIGHT | PENDANT LIGHT (WARM WHITE) / LED STRIP LIGHT (WARM WHITE) |
| CABINET MATERIAL | PLYWOOD / MDF |
| FINISH | LAMINATE / MARBLE FINISH |
| MOUNTING | WALL-MOUNTED |
| LEGEND | |
|---|---|
| WOOD FINISH (LIGHT OAK) | |
| LAMINATE FINISH (OFF WHITE / BEIGE) | |
| GOLD FINISH (MIRROR FRAME) | |
| CUSHION FABRIC (LIGHT BEIGE) | |
| LED STRIP LIGHT (WARM WHITE) | |

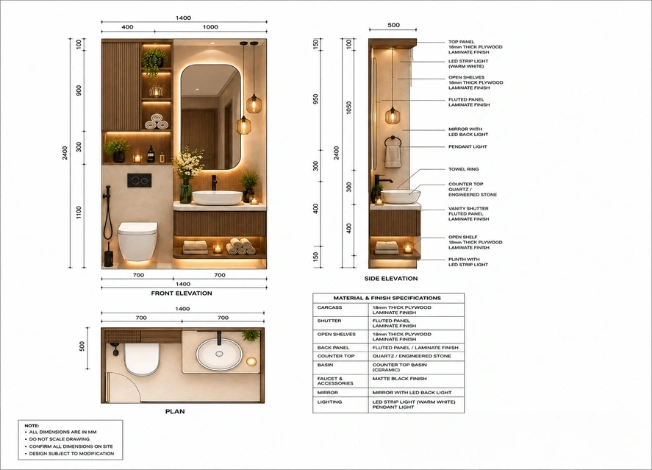

| MATERIAL | FINISH |
|---|---|
| CARCASS | 18MM THICK PLYWOOD – LAMINATE FINISH |
| SHUTTER | FLUTED PANEL – LAMINATE FINISH |
| OPEN SHELVES | 18MM THICK PLYWOOD – LAMINATE FINISH |
| BACK PANEL | FLUTED PANEL / LAMINATE FINISH |
| COUNTERTOP | QUARTZ / ENGINEERED STONE |
| BASIN | COUNTERTOP BASIN – CERAMIC |
| FAUCET & ACCESSORIES | MATTE BLACK FINISH |
| MIRROR | MIRROR WITH LED BACKLIGHT |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) / PENDANT LIGHT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MM | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

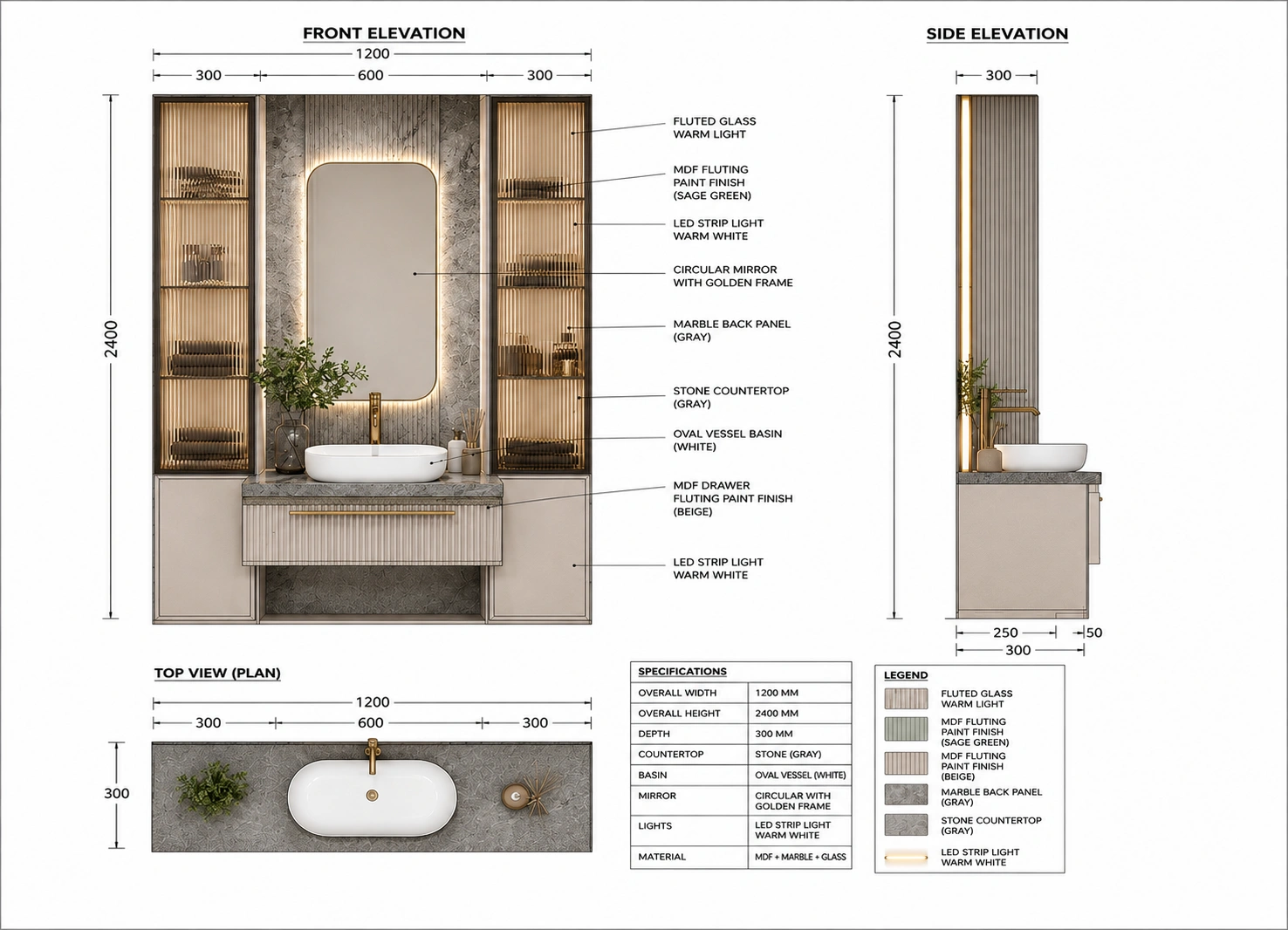

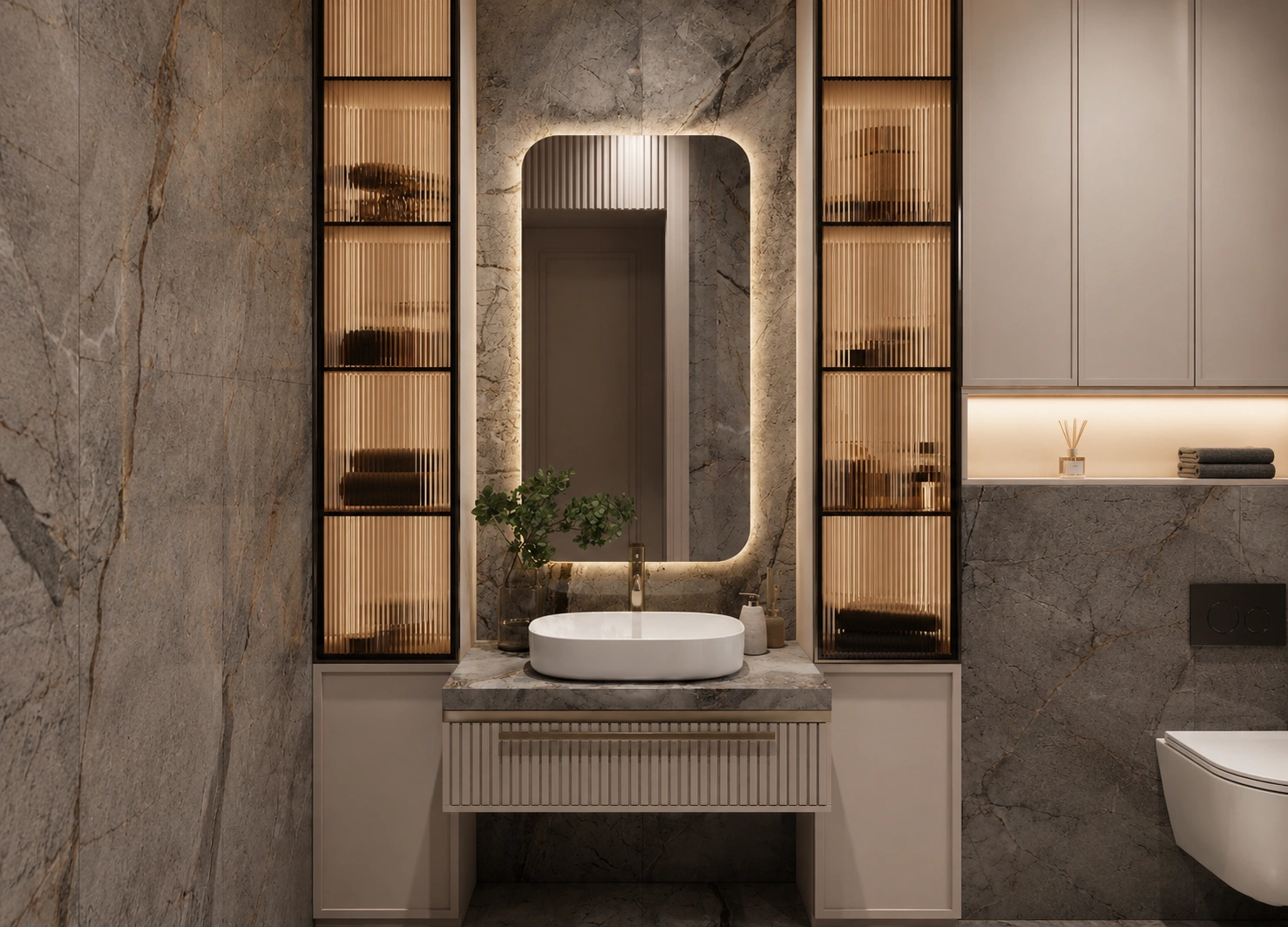

| MATERIAL | FINISH |
|---|---|
| OVERALL WIDTH | 1200 MM |
| OVERALL HEIGHT | 2400 MM |
| DEPTH | 300 MM |
| COUNTERTOP | STONE (GREY) |
| BASIN | OVAL VESSEL BASIN (WHITE) |
| MIRROR | CIRCULAR MIRROR WITH GOLDEN FRAME |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) |
| MATERIAL | MDF / MARBLE / GLASS |
| LEGEND | |
|---|---|
| FLUTED GLASS – WARM LIGHT | |
| MDF FLUTING – PAINT FINISH (SAGE GREEN) | |
| MDF FATTING – PAINT FINISH (BEIGE) | |
| MARBLE BACK PANEL (GRAY) | |
| STONE COUNTERTOP (GRAY) | |
| LED STRIP LIGHT – WARM WHITE | |

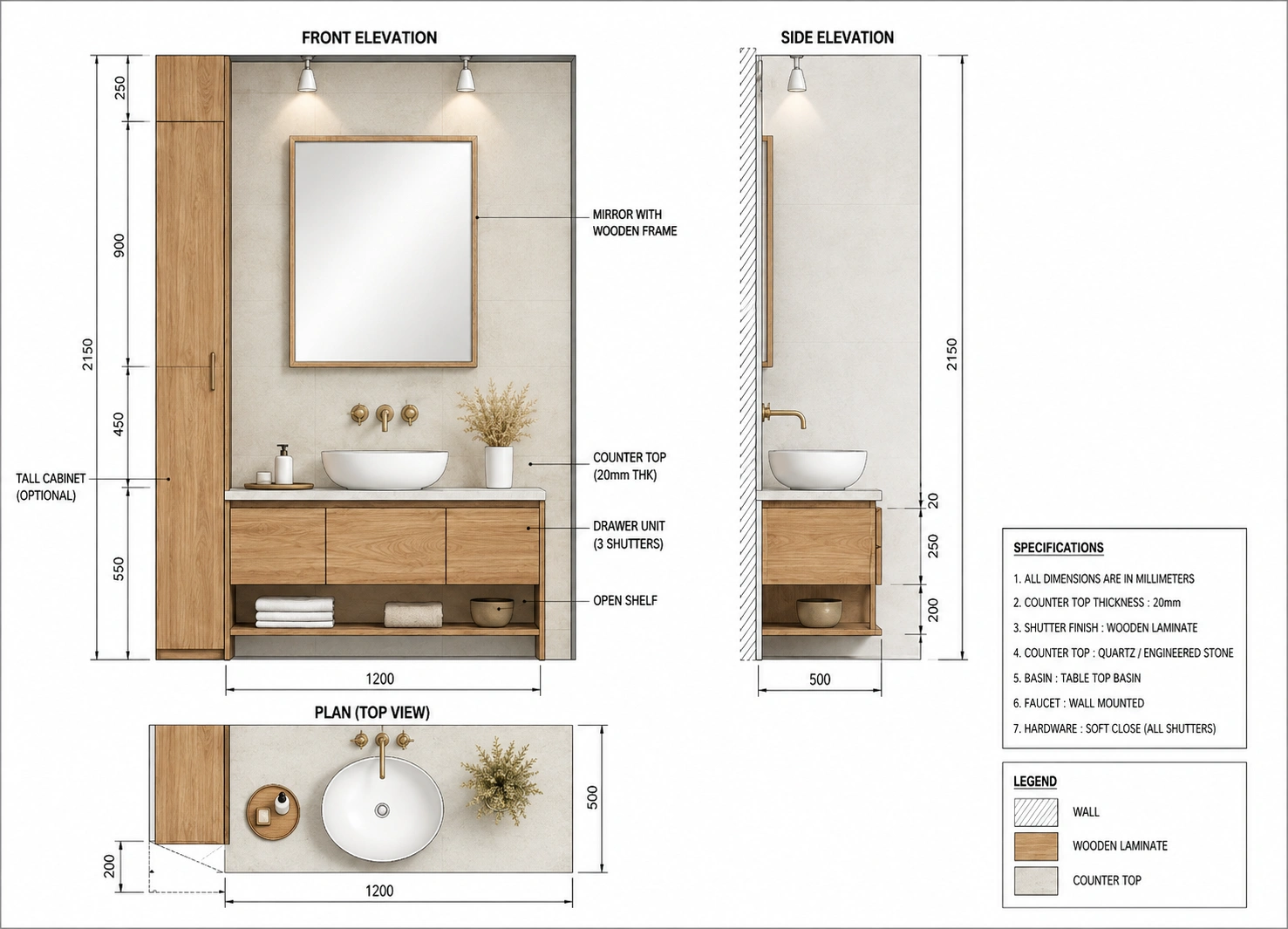

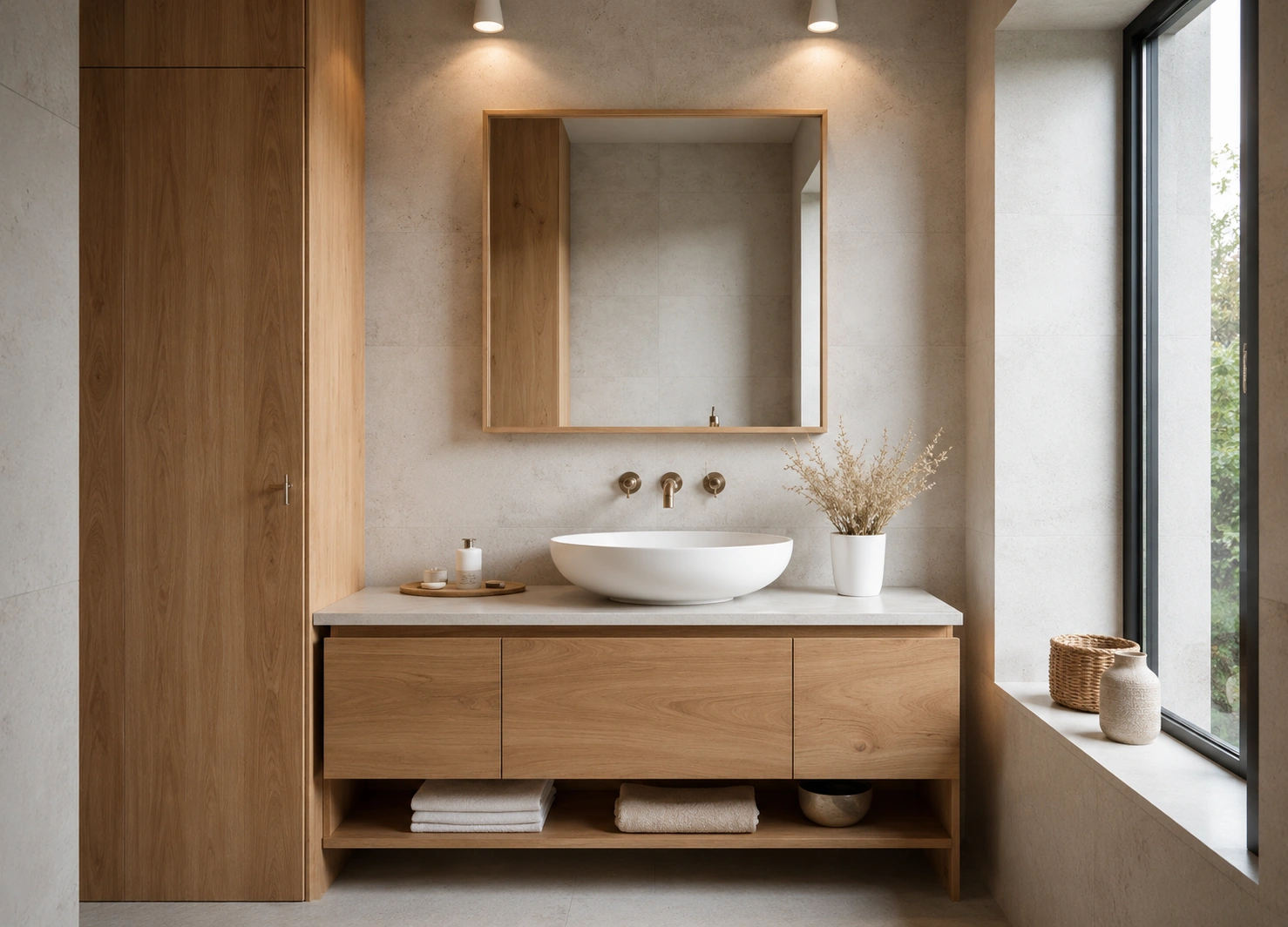

| MATERIAL | FINISH |
|---|---|
| DIMENSIONS | ALL DIMENSIONS ARE IN MILLIMETERS |
| COUNTERTOP THICKNESS | 20 MM |
| SHUTTER FINISH | WOODEN LAMINATE |
| COUNTERTOP | QUARTZ / ENGINEERED STONE |
| BASIN | TABLETOP BASIN |
| FAUCET | WALL-MOUNTED |
| HARDWARE | SOFT-CLOSE (ALL SHUTTERS) |
| LEGEND | |
|---|---|
| WALL | |
| WOODEN LAMINATE | |
| COUNTERTOP | |

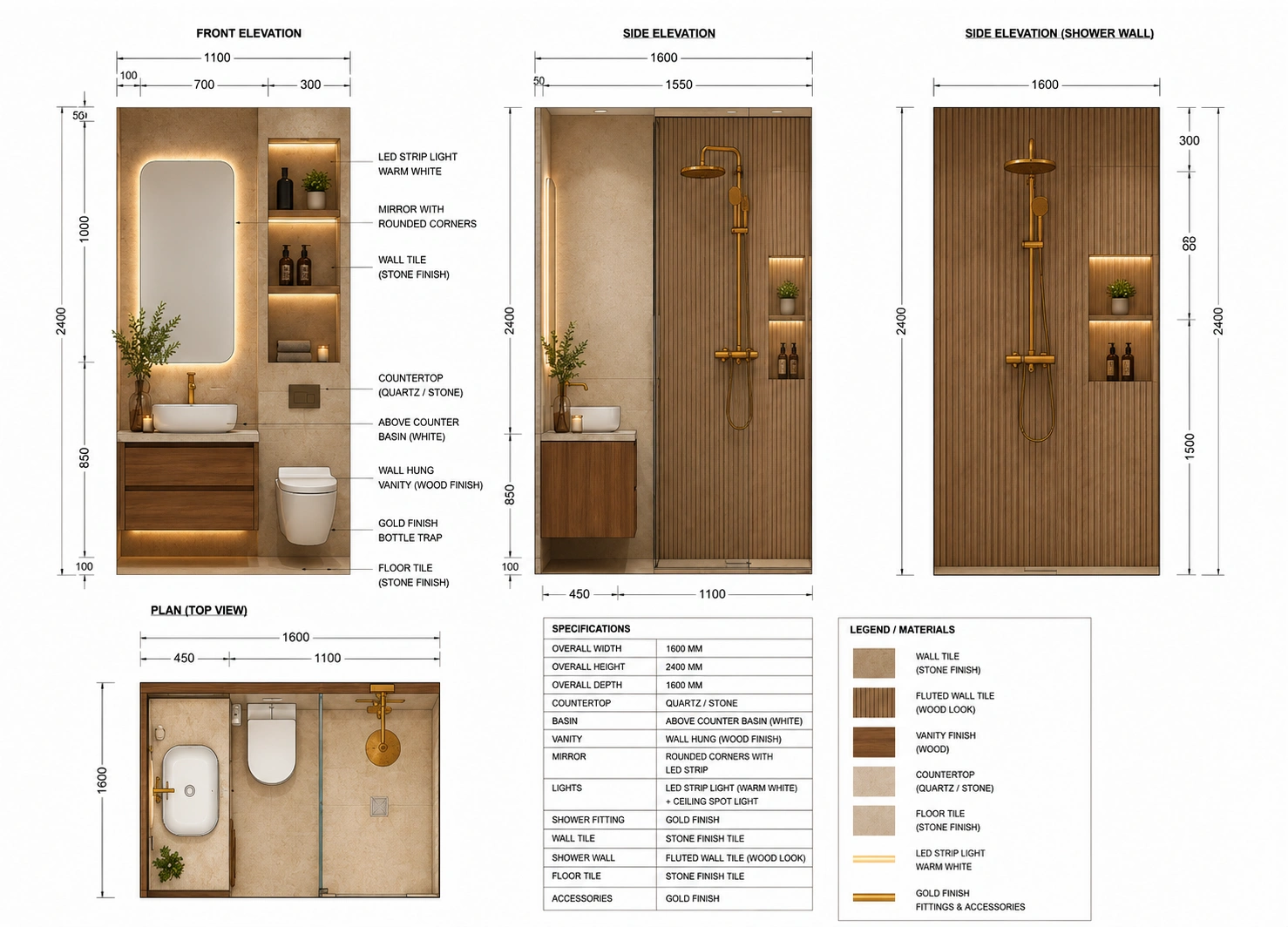

| MATERIAL | FINISH |
|---|---|
| OVERALL WIDTH | 1600 MM |
| OVERALL HEIGHT | 2400 MM |
| OVERALL DEPTH | 1600 MM |
| COUNTERTOP | QUARTZ / STONE |
| BASIN | ABOVE-COUNTER BASIN (WHITE) |
| VANITY | WALL-HUNG (WOOD FINISH) |
| MIRROR | ROUNDED-CORNER MIRROR WITH LED STRIP |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) / CEILING SPOT LIGHT |
| SHOWER FITTING | GOLD FINISH |
| WALL TILE | STONE-FINISH TILE |
| SHOWER WALL | FLUTED WALL TILE (WOOD LOOK) |
| FLOOR TILE | STONE-FINISH TILE |
| ACCESSORIES | GOLD FINISH |
| LEGEND | |
|---|---|
| WALL TILE (STONE FINISH) | |
| FLUTED WALL TILE (WOOD LOOK) | |
| VANITY FINISH (WOOD) | |
| COUNTERTOP (QUARTZ / STONE) | |
| FLOOR TILE (STONE FINISH) | |
| LED STRIP LIGHT (WARM WHITE) | |
| GOLD FINISH FITTINGS & ACCESSORIES | |
