| ITEM | SPECIFICATION |
|---|---|
| OVERALL WIDTH | 2400 mm |
| OVERALL HEIGHT | 2400 mm |
| OVERALL DEPTH | 80 mm |
| LEFT & RIGHT WOODEN BATTEN | 20MM (W) × 20MM (T) @ 20MM GAP |
| MDF PANEL THICKNESS | 12 mm |
| PLYWOOD BACK PANEL | 12 mm THK |
| LED STRIP LIGHT | WARM WHITE |
| TREE DECOR | METAL (GOLD FINISH) |
| MOUNTING | WALL MOUNTED |
| FINISH | PU FINISH |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • TOLERANCE ± 5mm. | |
| • LED STRIP LIGHT WITH DIFFUSER. | |
| • MDF PANELS CUT IN CURVED SHAPES AS SHOWN. |
| LEGEND | |
|---|---|
| MDF PANEL MAROON PU FINISH | |
| MDF PANEL BEIGE PU FINISH | |
| MDF PANEL DARK GREY PU FINISH | |
| WOODEN BATTEN LIGHT OAK FINISH | |
| 3D METAL TREE DECOR GOLD FINISH | |
| MATERIAL | DETAILS |
|---|---|
| OVERALL WIDTH | 2400 mm |
| OVERALL HEIGHT | 2400 mm |
| OVERALL DEPTH | 80 mm |
| MDF THICKNESS | 12 mm |
| WOODEN BATTEN SIZE | 20 mm (W) × 20 mm (D) |
| BATTEN GAP | 20 mm |
| GOLD STRIP WIDTH | 12 mm (SINGLE) 20 mm (3 LINES) |
| LED STRIP LIGHT | WARM WHITE |
| BACK PANEL | 12 mm PLYWOOD |
| MOUNTING | SCREW FIXING |
| FINISH | PU / LAMINATE |
| SKIRTING HEIGHT | 80 mm |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS. | |
| • TOLERANCE ± 5mm. | |
| • LED STRIP LIGHT WITH DIFFUSER. | |
| • GOLD STRIPS MITERED AT CORNERS. | |
| • ALL MDF EDGES TO BE SEALED. | |
| • INSTALLATION TO BE DONE ON LEVEL WALL. |
| MATERIAL / FINISH LEGEND | |
|---|---|
| MDF – BEIGE FINISH | |
| MDF – DARK GREY FINISH | |
| MDF – FLUTED FINISH (VERTICAL GROOVES) | |
| CWOODEN BATTEN – LIGHT OAK FINISH | |
| GOLD METAL STRIP – BRASS FINISH | |
| SKIRTING – BLACK FINISH | |
| LED STRIP LIGHT (WARM WHITE) | |
| MATERIAL | DETAILS |
|---|---|
| OVERALL WIDTH | 2400 mm |
| OVERALL HEIGHT | 2400 mm |
| OVERALL DEPTH | 40 mm |
| MIRROR THICKNESS | 5 mm |
| MIRROR TYPE | BRONZE MIRROR |
| STRIP MATERIAL | STAINLESS STEEL (PVD COATED) |
| STRIP FINISH | CHAMPAGNE GOLD |
| STRIP WIDTH | 12 mm |
| BACK PANEL | 12 mm MDF |
| FRAME MATERIAL | PU MOULDING |
| FRAME FINISH | PAINT (OFF WHITE) |
| MOUNTING | WALL MOUNTED |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS. | |
| • TOLERANCE ± 5mm. | |
| • MIRROR PASTED ON 12MM MDF BACKING. | |
| • SS STRIPS WITH 45° MITERED JOINT AT INTERSECTIONS. | |
| • INSTALLATION TO BE DONE ON LEVEL WALL. | |
| • CLEAN MIRROR WITH SOFT DRY CLOTH ONLY. |
| LEGEND | |
|---|---|
| BRONZE MIRROR (5mm THICK) | |
| STAINLESS STEEL STRIP CHAMPAGNE GOLD (12mm WIDE) | |
| PU MOULDING FRAME PAINT FINISH (OFF WHITE) | |

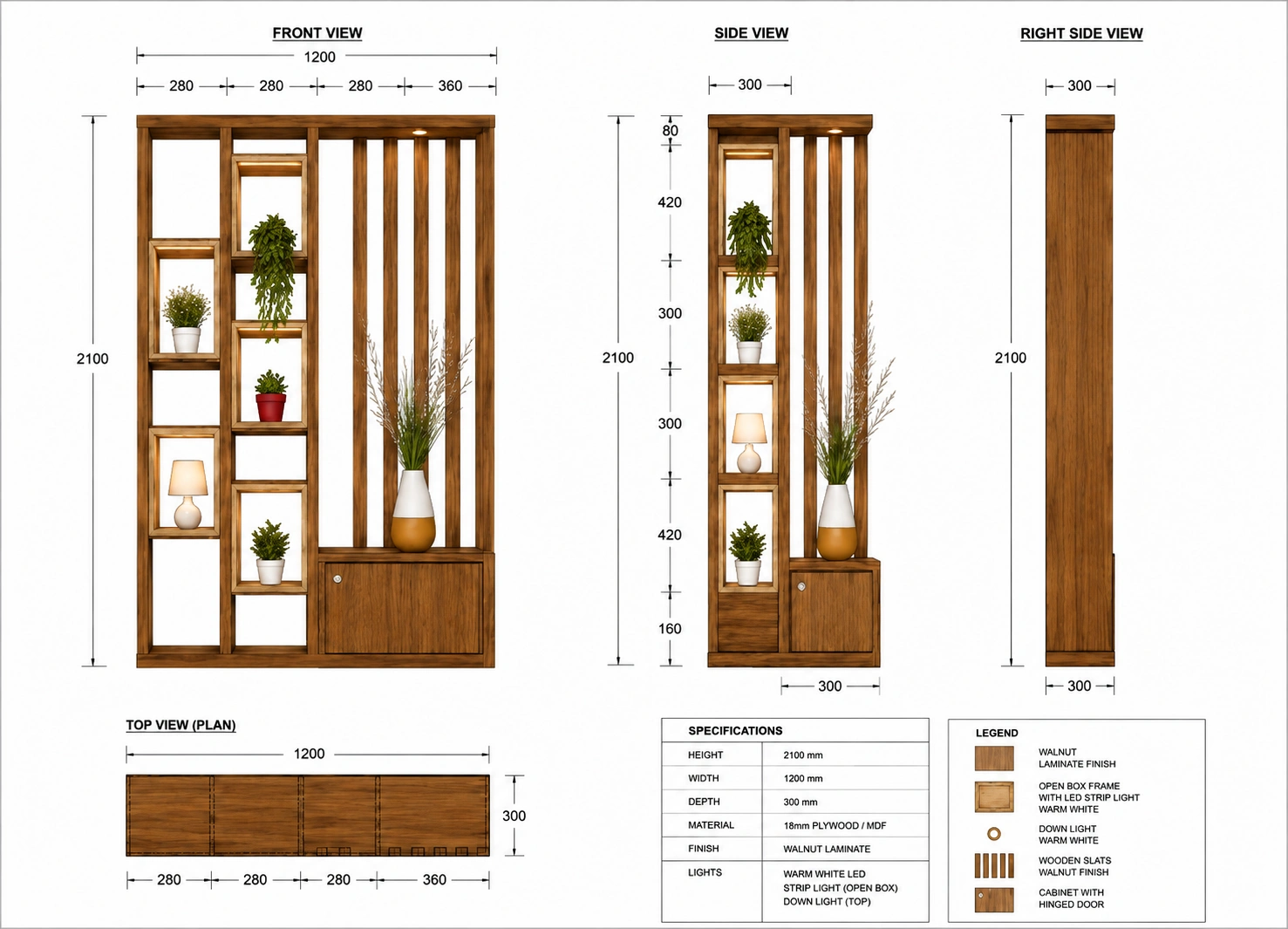

| SPECIFICATIONS | |
|---|---|
| LEG HEIGHT | 2100 mm |
| WIDTH | 1200 mm |
| DEPTH | 300 mm |
| MATERIAL | 18mm PLYWOOD/MDF |
| FINISH | WALNUT LAMINATE |
| LIGHTS | WARM WHITE LED STRIP LIGHT (OPEN BOX) |
| DOWN LIGHT | DOWN LIGHT (TOP) |
| LEGEND | |
|---|---|
| WALNUT LAMINATE FINISH | |
| OPEN BOX FRAME WITH WARM WHITE LED STRIP LIGHT | |
| DOWNLIGHT – WARM WHITE | |
| WOODEN SLATS – WALNUT FINISH | |
| CABINET WITH HINGED DOOR | |

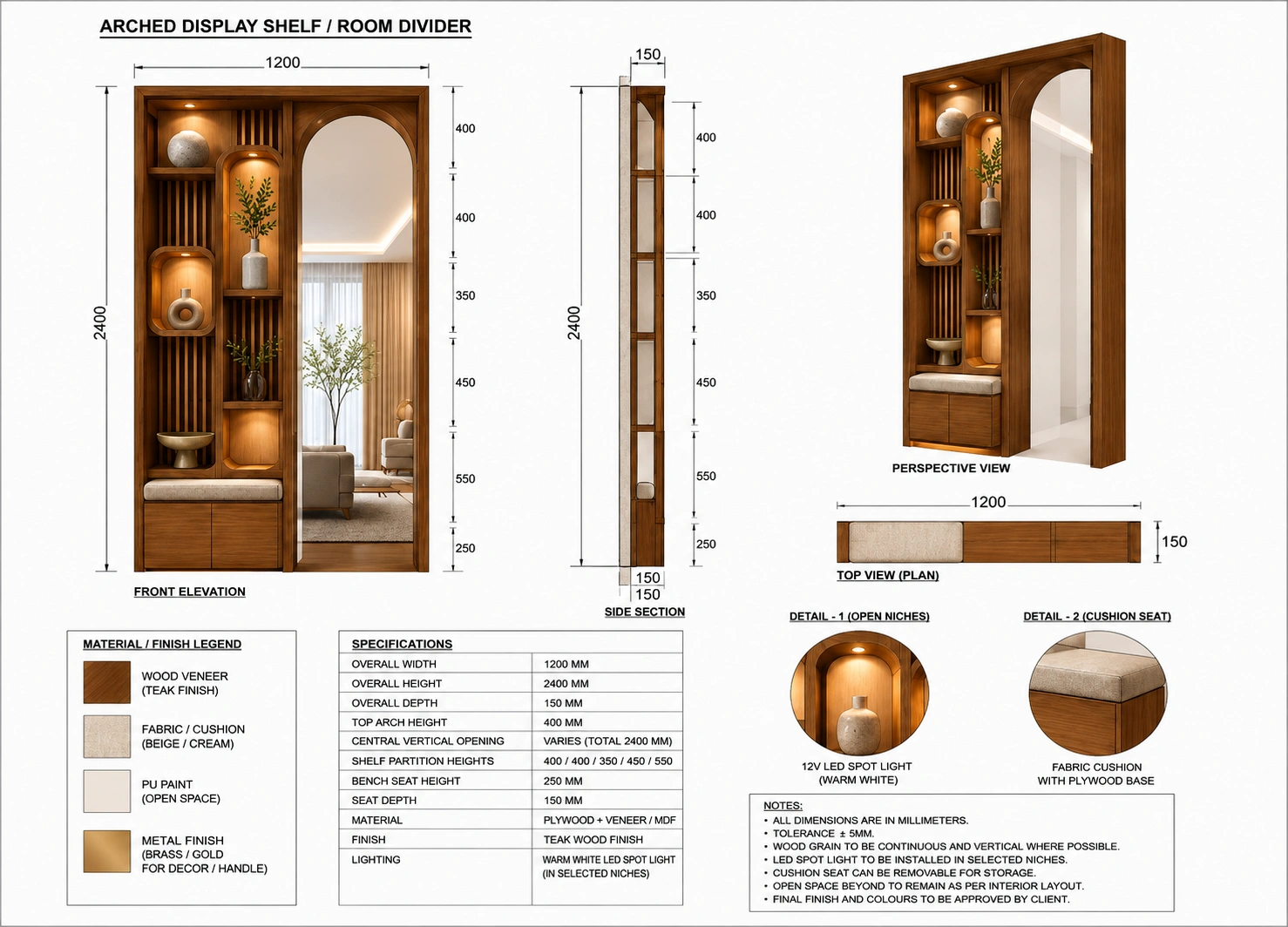

| MATERIAL | DETAILS |
|---|---|
| OVERALL WIDTH | 1200 MM |
| OVERALL HEIGHT | 2400 MM |
| OVERALL DEPTH | 150 MM |
| TOP ARCH HEIGHT | 400 MM |
| CENTRAL VERTICAL OPENING | VARIES (TOTAL 2400 MM) |
| SHELF PARTITION HEIGHTS | 400/400/350/450/550 |
| BENCH SEAT HEIGHT | 250 MM |
| SEAT DEPTH | 150 MM |
| MATERIAL | PLYWOOD + VENEER/MDF |
| FINISH | TEAK WOOD FINISH |
| LIGHTING | WARM WHITE LED SPOT LIGHT (IN SELECTED NICHES) |
| NOTES: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS. | |
| • TOLERANCE ± 5MM. | |
| • WOOD GRAIN TO BE CONTINUOUS AND VERTICAL WHERE POSSIBLE. | |
| • LED SPOT LIGHT TO BE INSTALLED IN SELECTED NICHES. | |
| • CUSHION SEAT CAN BE REMOVED FOR STORAGE. | |
| • OPEN SPACE BEYOND TO REMAIN AS PER INTERIOR LAYOUT. | |
| • FINAL FINISH AND COLOURS TO BE APPROVED BY CLIENT. |
| MATERIAL / FINISH LEGEND | |
|---|---|
| WOOD VENEER (TEAK FINISH) | |
| FABRIC / CUSHION (BEIGE / CREAM) | |
| PU PAINT (OPEN SPACE) | |
| METAL FINISH (BRASS / GOLD) FOR DECORATIVE ELEMENTS / HANDLES | |
| MATERIAL / FINISH | DETAILS |
|---|---|
| FRAME | 18mm THK PLYWOOD |
| PATTERN PANELS | 12mm MDF / CNC CUT MDF |
| FINISH | WOOD VENEER (TEAK) |
| COLOUR | TEAK WOOD FINISH |
| LEGEND | |
|---|---|
| TAKE WOOD FINISH | |
| OPEN SPACE | |
| NOTES: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS. | |
| • FIX TO FLOOR, WALL & CEILING. | |
| • PANEL THICKNESS: MDF/CNC MDF PANELS - 12mm. | |
| • FRAME MEMBERS: 18mm PLYWOOD. | |
| • OPEN SPACES CAN BE USED FOR DISPLAY/VISIBILITY. | |
| • FINISH: TEAK WOOD VENEER. |

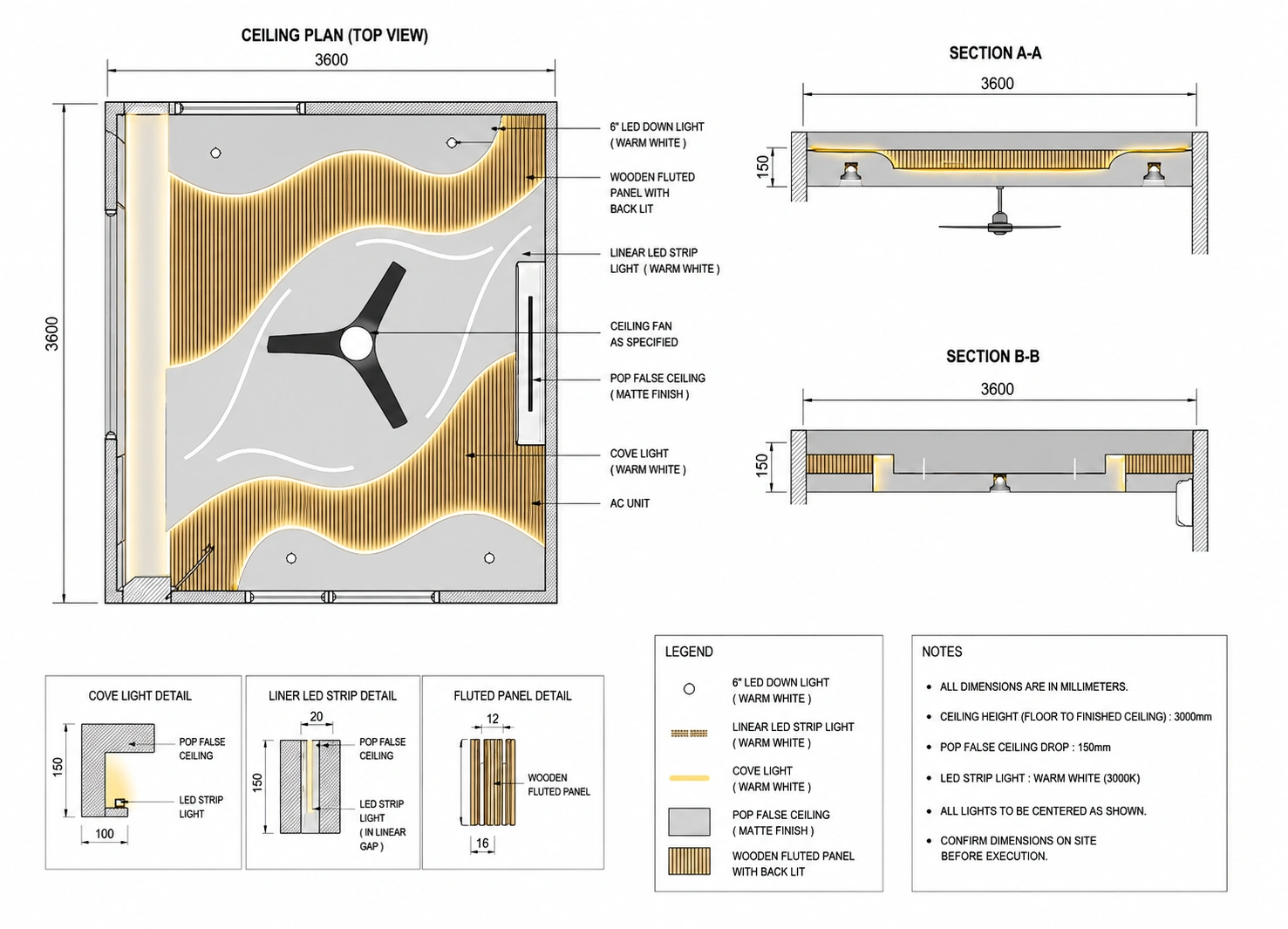

| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS. | |
| • CEILING HEIGHT (FLOOR TO FINISHED CEILING): 3000mm. | |
| • POP FALSE CEILING DROP: 150mm. | |
| • LED STRIP LIGHT: WARM WHITE (3000K). | |
| • ALL LIGHTS TO BE CENTERED AS SHOWN. | |
| • CONFIRM DIMENSIONS ON SITE BEFORE EXECUTION. |
| LEGEND | |
|---|---|
| 6" LED DOWNLIGHT (WARM WHITE) | |
| LINEAR LED STRIP LIGHT (WARM WHITE) | |
| COVE LIGHT (WARM WHITE) | |
| POP FALSE CEILING (MATTE FINISH) | |
| WOODEN FLUTED PANEL – BACKLIT | |
