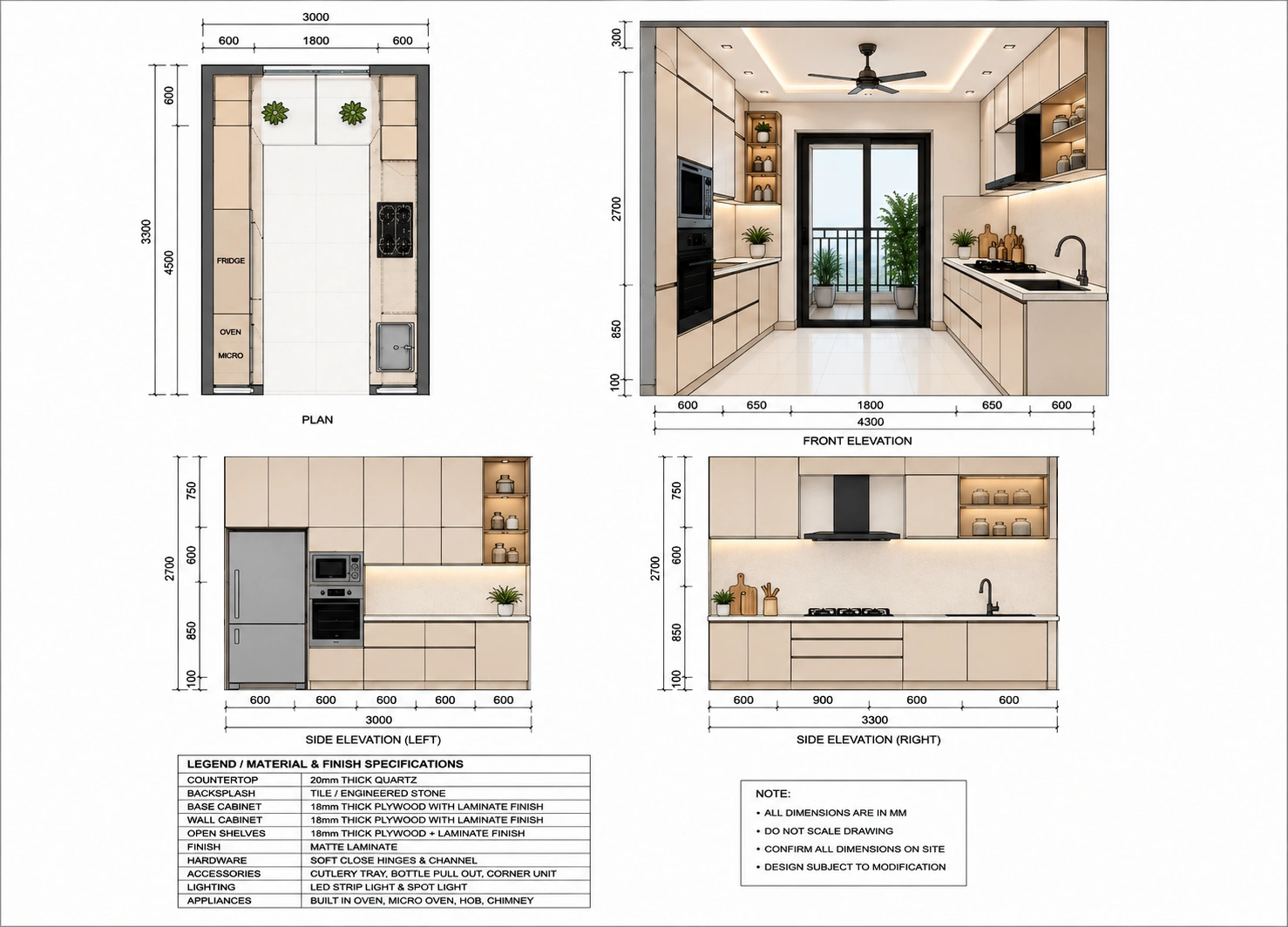

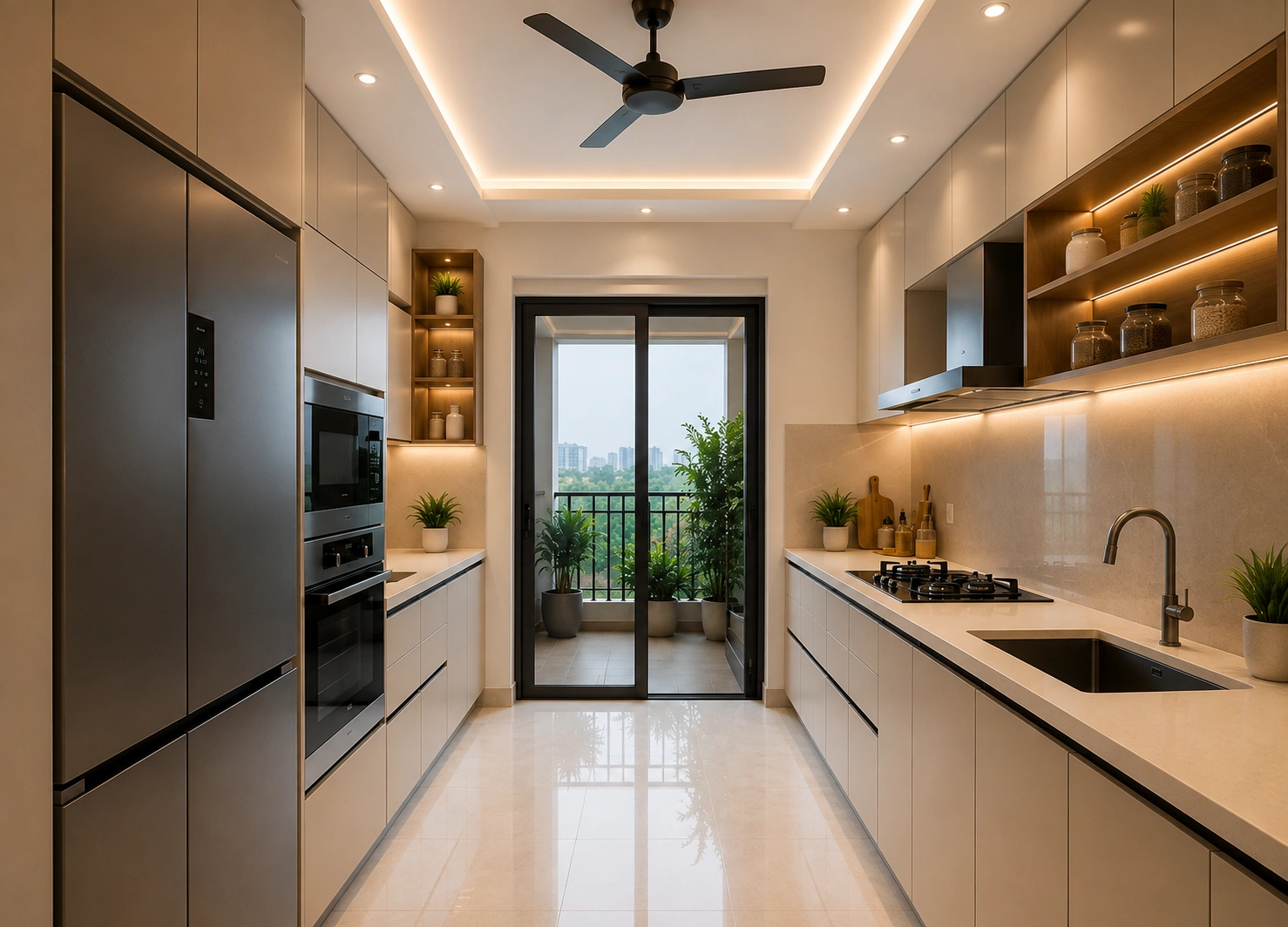

| MATERIAL | DETAILS |
|---|---|
| COUNTERTOP | 20mm THICK QUARTZ |
| BACKSPLASH | TILE / ENGINEERED STONE |
| BASE CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| WALL CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| OPEN SHELVES | 18mm THICK PLYWOOD + LAMINATE FINISH |
| FINISH | MATTE LAMINATE |
| HARDWARE | SOFT CLOSE HINGES & CHANNEL |
| ACCESSORIES | CUTLERY TRAY, BOTTLE PULL OUT, CORNER UNIT |
| LIGHTING | LED STRIP LIGHT & SPOT LIGHT |
| APPLIANCES | BUILT IN OVEN, MICRO OVEN, HOB, CHIMNEY |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

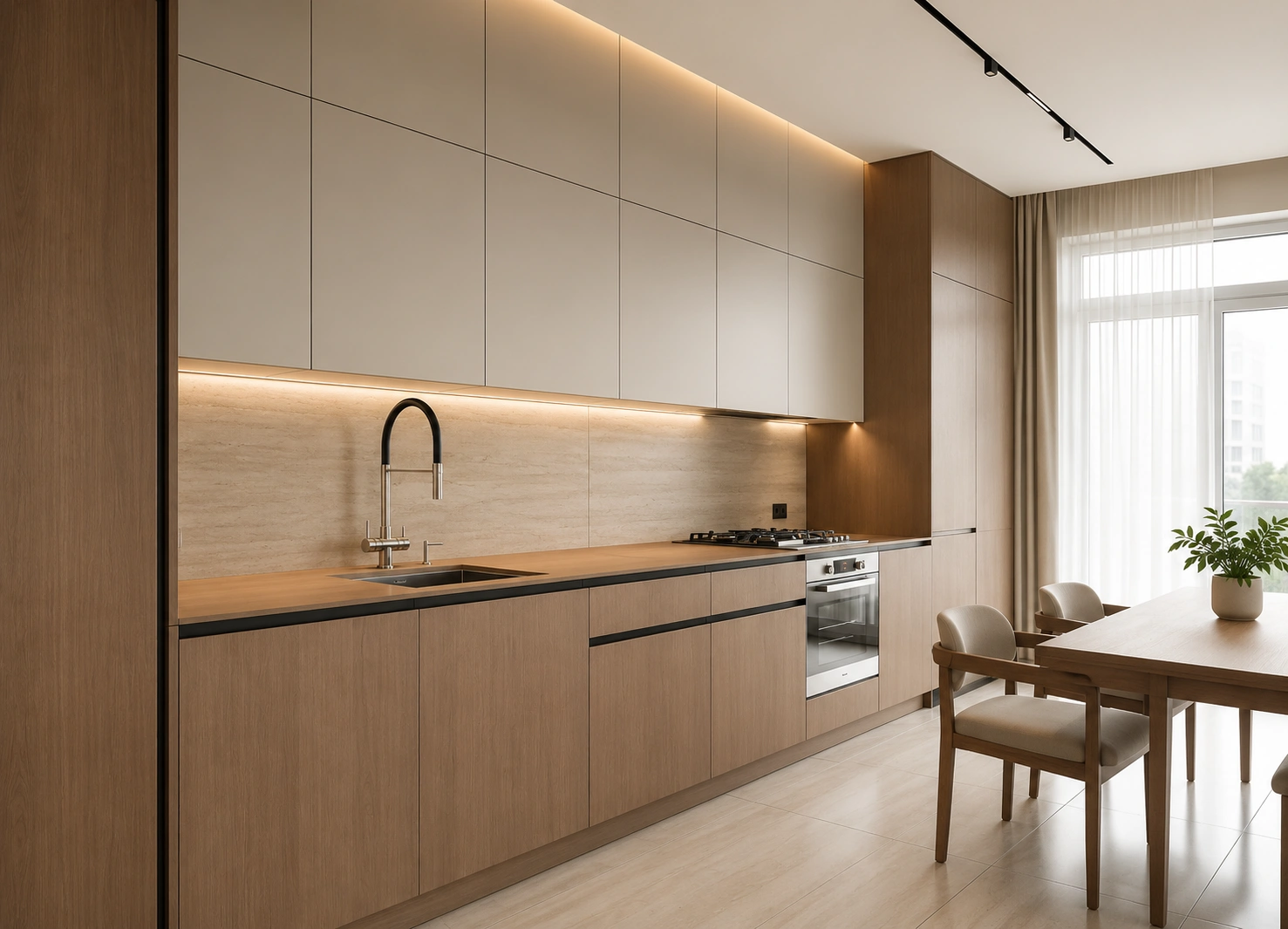

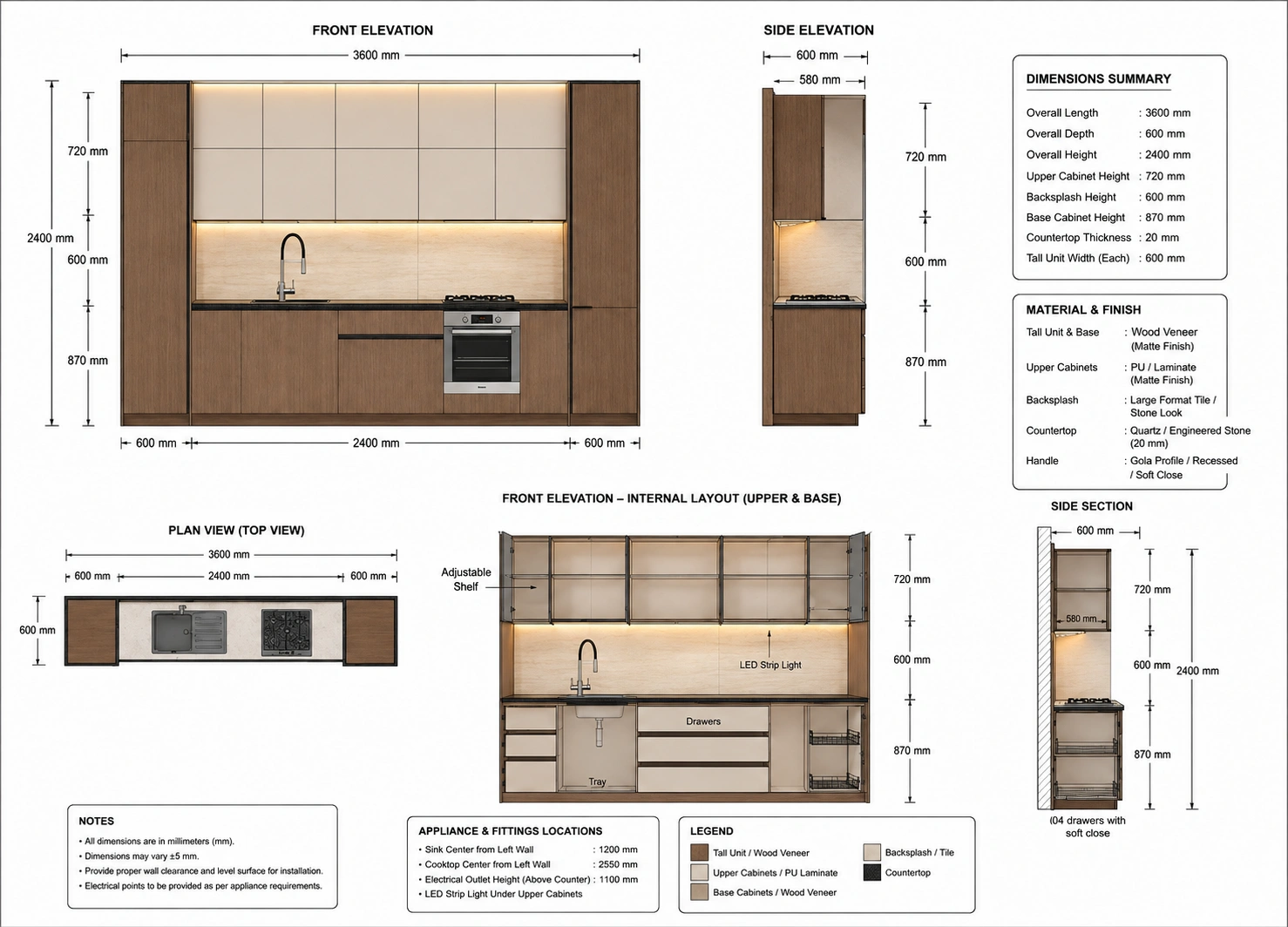

| DIMENSIONS SUMMARY | |
|---|---|
| Overall Length | 3600 mm |
| Overall Depth | 600 mm |
| Overall Height | 2400 mm |
| Upper Cabinet Height | 720 mm |
| Backsplash Height | 600 mm |
| Base Cabinet Height | 870 mm |
| Countertop Thickness | 20 mm |
| Tall Unit Width (Each) | 600 mm |
| MATERIAL | FINISH |
|---|---|
| Tall Unit & Base | Wood Veneer – Matte Finish |
| Upper Cabinets | PU / Laminate – Matte Finish |
| Backsplash | Large Format Tile / Stone Look |
| Countertop | Quartz / Engineered Stone – 20 mm |
| Handle | Gola Profile / Recessed |
| Hardware | Soft Close |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MILLIMETERS (MM). | |
| • DIMENSIONS MAY VARY ± 5 MM. | |
| • PROVIDE PROPER WALL CLEARANCE AND LEVEL SURFACE FOR INSTALLATION. | |
| • ELECTRICAL POINTS TO BE PROVIDED AS PER APPLIANCE REQUIREMENTS. |
| LOCATION | DETAILS |
|---|---|
| SINK CENTER FROM LEFT WALL | 1050 mm |
| COOKTOP CENTER FROM LEFT WALL | 2550 mm |
| ELECTRICAL OUTLET HEIGHT (ABOVE COUNTER) | 1100 mm |
| LED STRIP LIGHT | UNDER UPPER CABINETS |
| LEGEND | |
|---|---|
| TALL UNIT – WOOD VENEER | |
| UPPER CABINETS – PU LAMINATE | |
| BASE CABINETS – WOOD VENEER | |
| BACKSPLASH – TILE | |
| COUNTERTOP | |

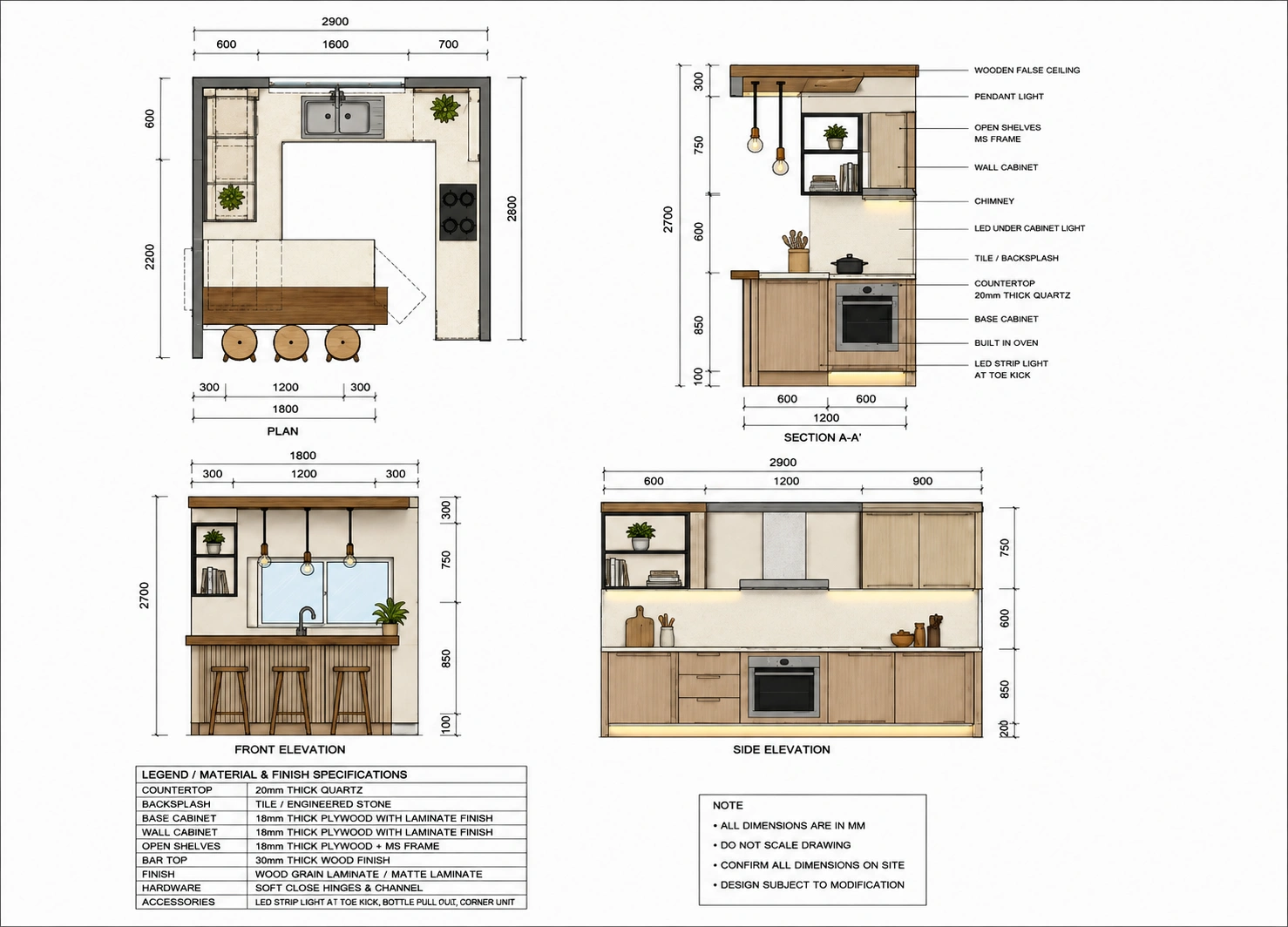

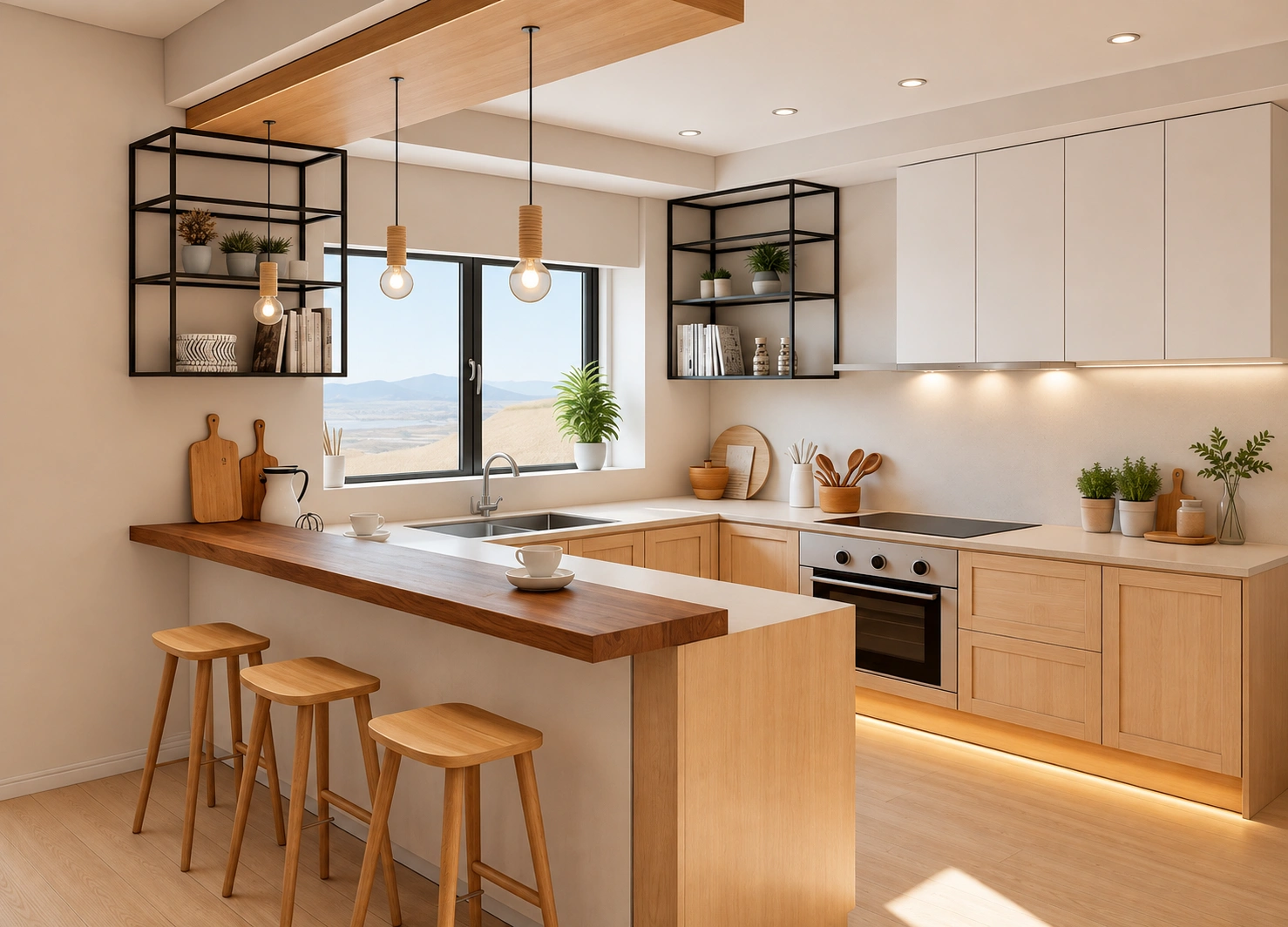

| MATERIAL / ITEM | DETAILS |
|---|---|
| COUNTERTOP | 20MM THICK QUARTZ |
| BACKSPLASH | TILE / ENGINEERED STONE |
| BASE CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| WALL CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| OPEN SHELVES | 18mm THICK PLYWOOD + MS FRAME |
| BAR TOP | 30MM THICK WOOD FINISH |
| FINISH | WOOD GRAIN LAMINATE + MATTE LAMINATE |
| HARDWARE | SOFT CLOSE HINGES & CHANNEL |
| ACCESSORIES | CUTLERY TRAY, BOTTLE PULL OUT, CORNER UNIT |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN mm | |
| • DO NOT SCALE DRAWING | |
| • CONFIRM ALL DIMENSIONS ON SITE | |
| • DESIGN SUBJECT TO MODIFICATION |

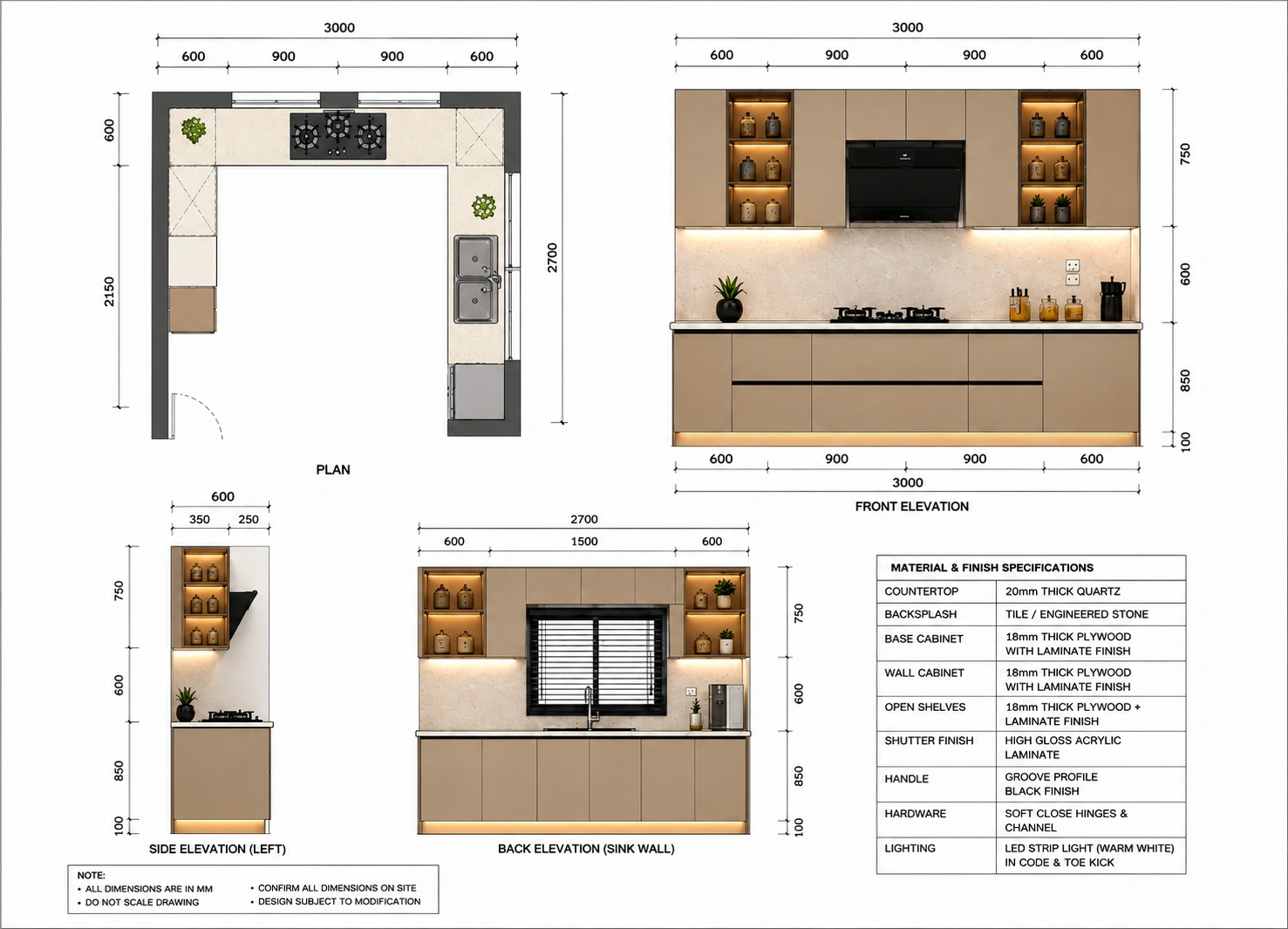

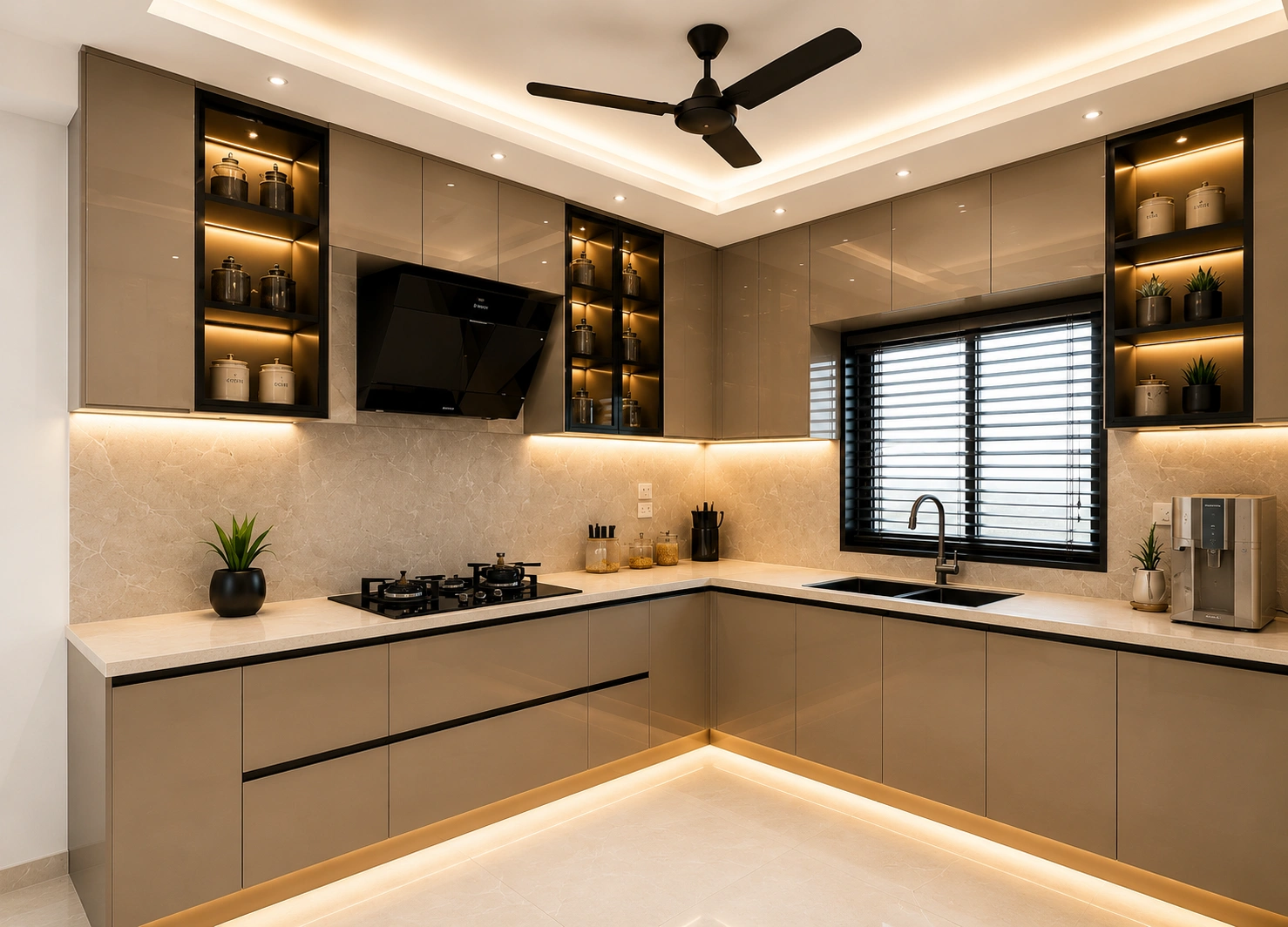

| MATERIAL / ITEM | DETAILS |
|---|---|
| COUNTERTOP | 20mm THICK QUARTZ |
| BACKSPLASH | TILE / ENGINEERED STONE |
| BASE CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| WALL CABINET | 18mm THICK PLYWOOD WITH LAMINATE FINISH |
| OPEN SHELVES | 18mm THICK PLYWOOD + LAMINATE FINISH |
| SHUTTER FINISH | HIGH GLOSS ACRYLIC LAMINATE |
| HANDLE | GROOVE PROFILE BLACK FINISH |
| HARDWARE | SOFT CLOSE HINGES & CHANNEL |
| LIGHTING | LED STRIP LIGHT (WARM WHITE) IN COVE & TOE KICK |
| NOTE: | |
|---|---|
| • ALL DIMENSIONS ARE IN MM. | |
| • DO NOT SCALE DRAWING. | |
| • CONFIRM ALL DIMENSIONS ON SITE. | |
| • DESIGN SUBJECT TO MODIFICATION. |

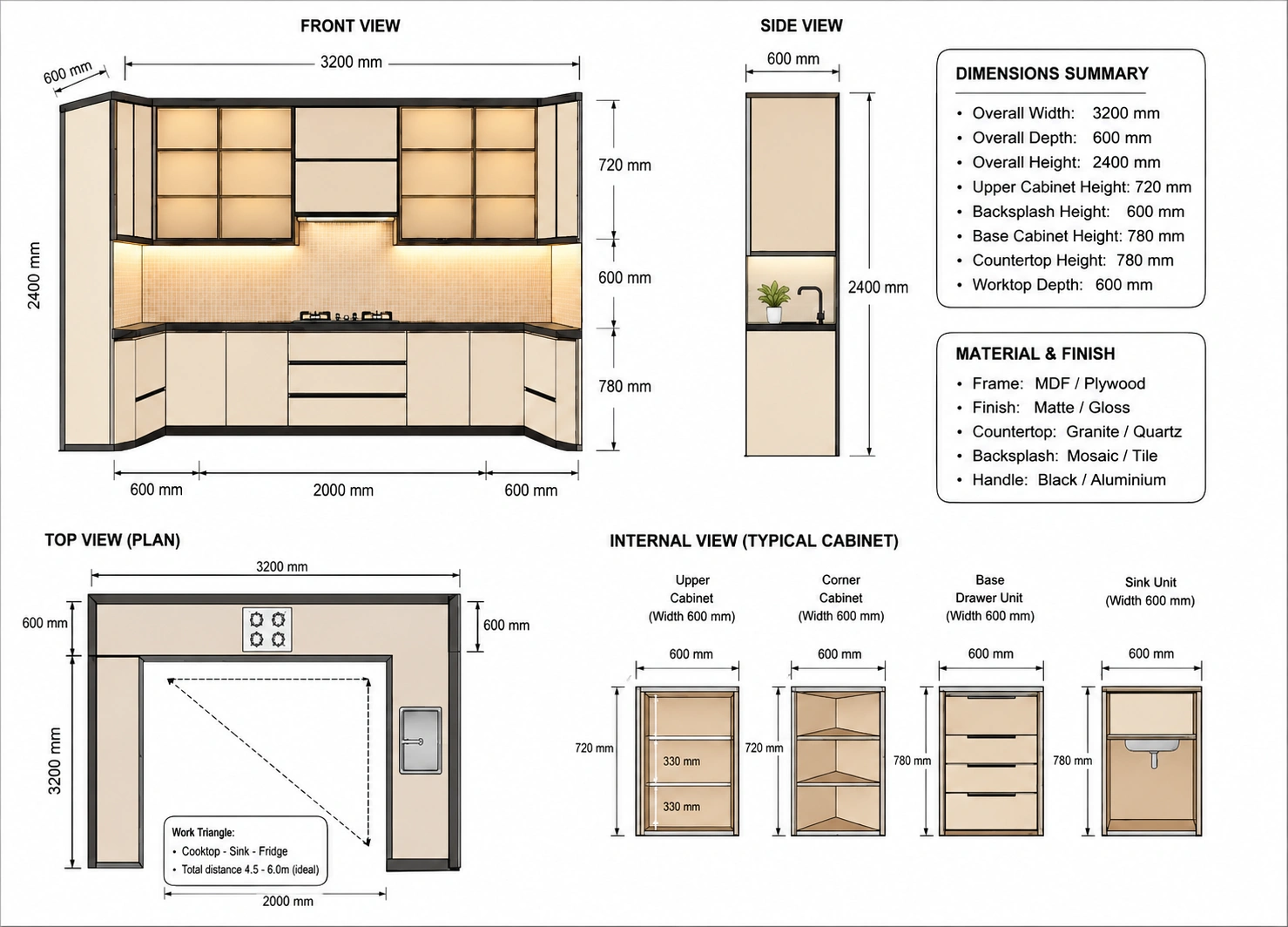

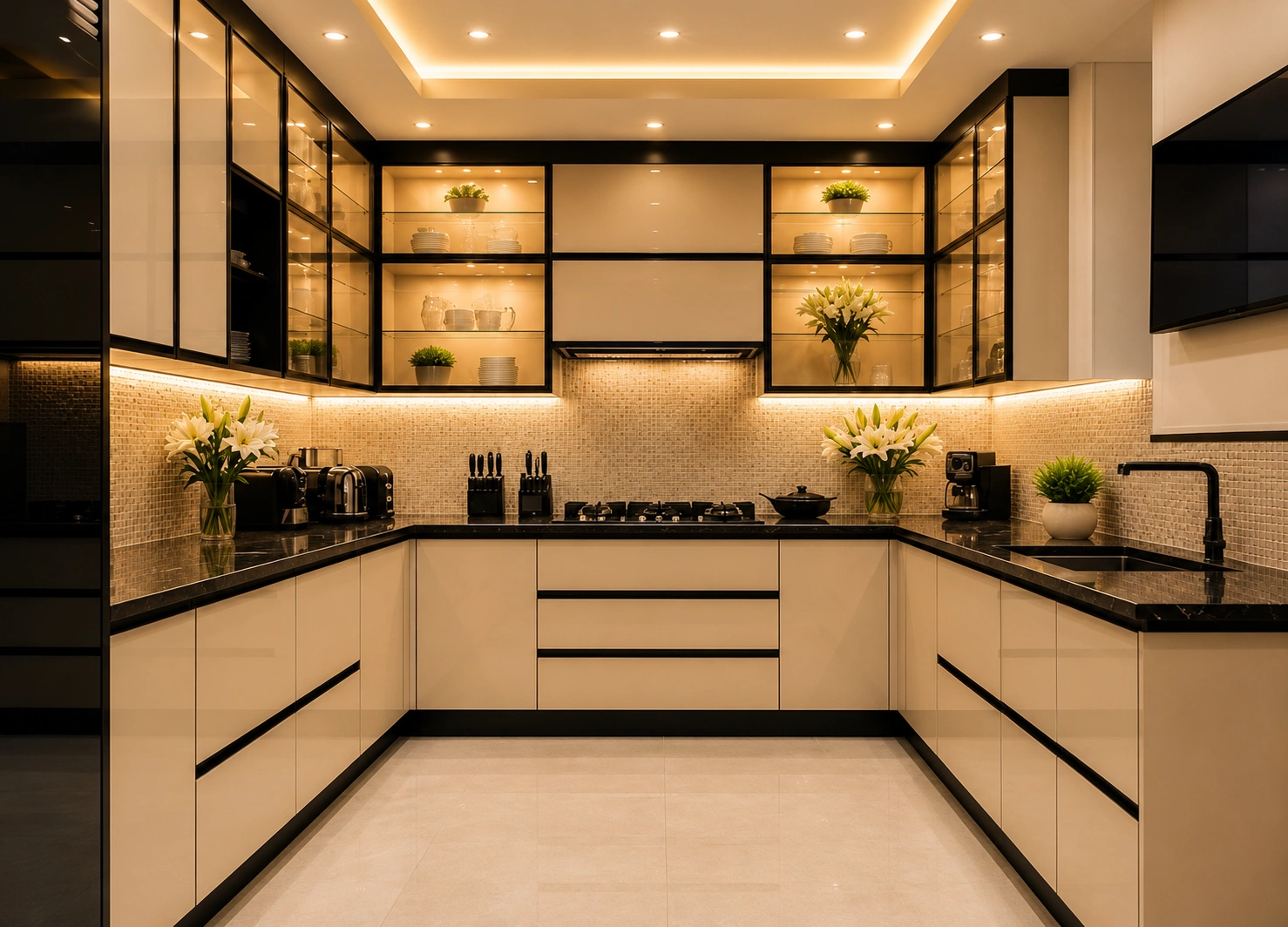

| MATERIAL | DIMENSIONS |
|---|---|
| OVERALL WIDTH | 3200 mm |
| OVERALL DEPTH | 600 mm |
| OVERALL HEIGHT | 2400 mm |
| UPPER CABINET HEIGHT | 720 mm |
| BACKSPLASH HEIGHT | 600 mm |
| BASE CABINET HEIGHT | 780 mm |
| COUNTERTOP HEIGHT | 780 mm |
| WORKTOP DEPTH | 600 mm |
| MATERIAL | FINISH |
|---|---|
| FRAME | MDF / PLYWOOD |
| FINISH | MATTE / GLOSS |
| BACKSPLASH | MOSAIC / TILE |
| COUNTERTOP | QUARTZ / GRANITE |
| HANDLE | BLACK /ALUMINIUM |
